Bearings
Ball Bearings
Dunlop & Budget Ball Bearings
Quick Code: BB-516896

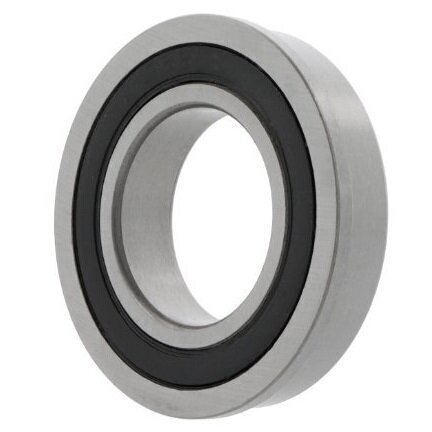

F61900-2RS ZEN Sealed Deep Groove Ball Bearing 10mm x 22mm x 6mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
10mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Flange on outer ring
Outside Dia
22mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
6mm
Reference
F61900-2RS
Additional Reference:
10126737
Quick Order Code
BB-516896
Product Description
The F61900-2RS ZEN Sealed Deep Groove Ball Bearing is a compact and precision-engineered bearing designed for reliable performance in various compact mechanical applications. This high-quality single row ball bearing offers exceptional durability and performance with its sealed design and robust construction.
Key Features:
- Single row deep groove ball bearing configuration
- Sealed design for enhanced protection against contaminants
- Compact dimensions: 10mm inside diameter, 22mm outside diameter, 6mm width
- Constructed with standard bearing steel
- Sheet steel cage for improved stability
- Normal radial clearance for optimal performance
Technical Specifications:
- Brand: ZEN
- Inside Diameter: 10mm
- Outside Diameter: 22mm
- Width: 6mm
- Sealing Type: Sealed (2RS)
- Operating Temperature Range: -30°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Bore Type: Cylindrical
- Cage Material: Sheet steel
Typical Applications:
- Precision machinery
- Small electric motors
- Automotive components
- Office equipment
- Medical devices
- Robotics and automation systems
Advantages:
- Sealed design prevents dust and moisture intrusion
- Low maintenance requirements
- Suitable for both low and moderate speed applications
- Excellent performance in challenging environmental conditions
The ZEN F61900-2RS provides a reliable and efficient bearing solution for applications requiring a compact, sealed bearing with robust performance and protection against external contaminants.
