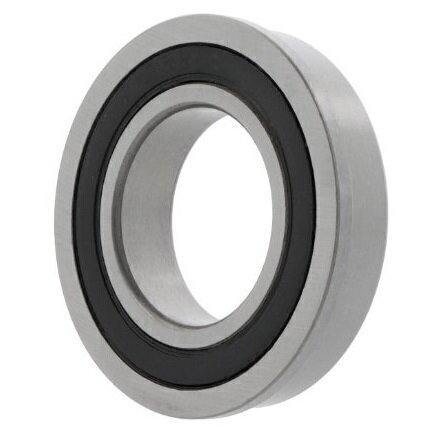

F61805-2RS ZEN Sealed Deep Groove Ball Bearing 25mm x 37mm x 7mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
25mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Flange on outer ring
Outside Dia
37mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
7mm
Reference
F61805-2RS
Additional Reference:
10126734
Quick Order Code
BB-516893
Product Description
The F61805-2RS ZEN Sealed Deep Groove Ball Bearing is a precision-engineered, compact bearing designed for high-performance applications requiring reliable and smooth rotational movement. This single-row ball bearing offers exceptional versatility and durability across various mechanical and industrial environments.
Key Features:
- Single row deep groove ball bearing design
- Sealed configuration for enhanced protection
- Cylindrical bore for flexible mounting options
- Sheet steel cage for increased durability
- Standard bearing steel construction
- Flange on outer ring for additional stability
Technical Specifications:
- Inside Diameter: 25mm
- Outside Diameter: 37mm
- Width: 7mm
- Tolerance Class: P0/PN2 / ABEC 1
- Temperature Range: -30°C to +120°C
- Radial Clearance: Normal
- Current Insulation: None
- Sealing: Sealed on both sides
Potential Applications:
- Precision electronic equipment
- Small motors and drives
- Automotive sensors
- Medical devices
- Robotics and automation systems
- Compact mechanical assemblies
The ZEN F61805-2RS bearing provides excellent protection against dust and contaminants while maintaining smooth operation. Its compact dimensions and sealed design make it ideal for applications requiring minimal maintenance and consistent performance in challenging environments.
