Quick Code: BB-516814

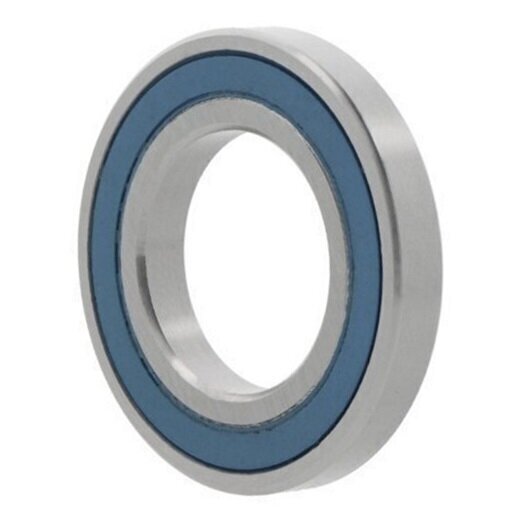

63803-2RS ZEN Sealed Deep Groove Ball Bearing 17mm x 26mm x 7mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Megapower T2.5 Timing Belts (2.5mm Pitch)
INA Track Roller Bearings LR5
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
17mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
26mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
7mm
Reference
63803-2RS
Additional Reference:
10126549
Quick Order Code
BB-516814
Product Description
The 63803-2RS ZEN Sealed Deep Groove Ball Bearing is a compact, precision-engineered solution designed for a wide range of precision mechanical applications, offering reliable performance in a small form factor.
Key Features:
- Compact dimensions: 17mm x 26mm x 7mm
- Single row deep groove design
- Sealed (2RS) configuration for enhanced protection
- Sheet steel cage for durability
- Cylindrical bore type
- Normal radial clearance
- Temperature range: -30°C to +120°C
Technical Specifications:
- Inside Diameter: 17mm
- Outside Diameter: 26mm
- Width: 7mm
- Material: Standard bearing steel
- Cage Material: Sheet steel
- Sealing: Sealed (2RS)
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No
Typical Applications:
- Precision machinery
- Small electric motors
- Robotics and automation equipment
- Medical devices
- Office equipment
- Model engineering
The ZEN 63803-2RS bearing provides excellent protection against contaminants with its sealed design, while maintaining smooth operation across a wide temperature range. Its compact size and standard bearing steel construction make it an ideal choice for applications requiring reliable, low-maintenance performance in small mechanical systems.
