Quick Code: BB-495390

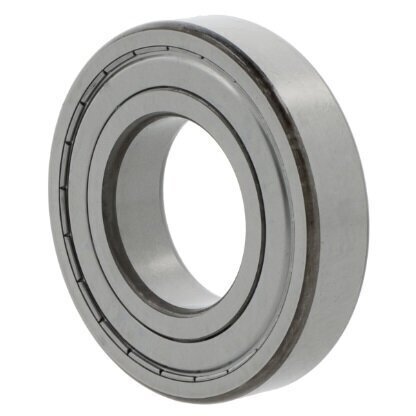

6314-2Z-C3 ZEN Shielded Deep Groove Ball Bearing 70mm x 150mm x 35mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
70mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
150mm
Seal Type
Cover on both sides
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
35mm
Reference
6314-2Z-C3
Additional Reference:
10147041
Quick Order Code
BB-495390
Product Description
The 6314-2Z-C3 ZEN Shielded Deep Groove Ball Bearing is a high-performance precision bearing designed for reliable mechanical applications across various industrial and engineering environments. This robust single-row ball bearing offers exceptional durability and consistent performance in a substantial 70mm x 150mm x 35mm configuration.
Key Features:
- Single-row design with cylindrical bore
- Shielded configuration with covers on both sides
- Manufactured from standard bearing steel
- Sheet steel cage for robust construction
- Slightly increased radial clearance for enhanced performance
Technical Specifications:
- Inside Diameter: 70mm
- Outside Diameter: 150mm
- Width: 35mm
- Temperature Range: -30°C to +150°C
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing Type: Shielded (2Z)
- Current Insulation: No
- Outer Ring: Without flange/groove
Typical Applications:
- Heavy industrial machinery
- Construction equipment
- Large electric motors
- Mining and quarrying machinery
- Agricultural and mining equipment
- Power transmission systems
The ZEN 6314-2Z-C3 bearing provides excellent protection against dust and light contaminants while maintaining optimal performance. Its standard bearing steel construction ensures long-lasting reliability and smooth rotation in demanding operational environments. The slightly increased radial clearance allows for additional flexibility in high-stress applications.
