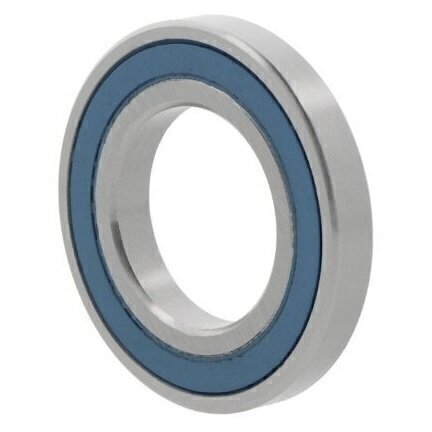

6202-2RS-C3-T9H-CB ZEN Sealed Deep Groove Ball Bearing 15mm x 35mm x 11mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Polyamide cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
15mm
Material
Standard bearing steel
Material of rolling elements
Ceramics
Outer ring
Without flange/groove
Outside Dia
35mm
Sealing
Sealed
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
11mm
Reference
6202-2RS-C3-T9H-CB
Additional Reference:
10155690
Quick Order Code
BB-525938
Product Description
The 6202-2RS-C3-T9H-CB ZEN Sealed Deep Groove Ball Bearing is a high-performance, precision-engineered bearing designed for demanding industrial and mechanical applications. Featuring advanced ceramic rolling elements and a polyamide cage, this bearing offers exceptional performance and durability.
Key Technical Specifications:
- Dimensional Details:
- Inside Diameter: 15mm
- Outside Diameter: 35mm
- Width: 11mm
- Construction Characteristics:
- Single-row bearing configuration
- Cylindrical bore
- Polyamide cage
- Sealed design (2RS type)
- Ceramic rolling elements
- Standard bearing steel construction
- Performance Attributes:
- Slightly increased radial clearance (C3 classification)
- Tolerance class: P0/PN2 / ABEC 1
- Operating temperature range: -30°C to +150°C
- No current insulation
- Outer ring without flange/groove
Typical Applications:
- High-precision electric motors
- Advanced automotive components
- Specialized industrial machinery
- Precision engineering equipment
- Robotics and automation systems
- Aerospace and medical device applications
Key Benefits:
- Enhanced durability with ceramic rolling elements
- Excellent heat and wear resistance
- Superior sealing protection against contaminants
- Optimal performance in challenging environmental conditions
- Reduced friction and improved operational efficiency
The ceramic rolling elements provide superior performance characteristics, making this ZEN bearing an ideal choice for applications requiring high precision, low friction, and exceptional reliability. Its sealed design ensures maximum protection against dust, dirt, and external contaminants while maintaining optimal lubrication.
