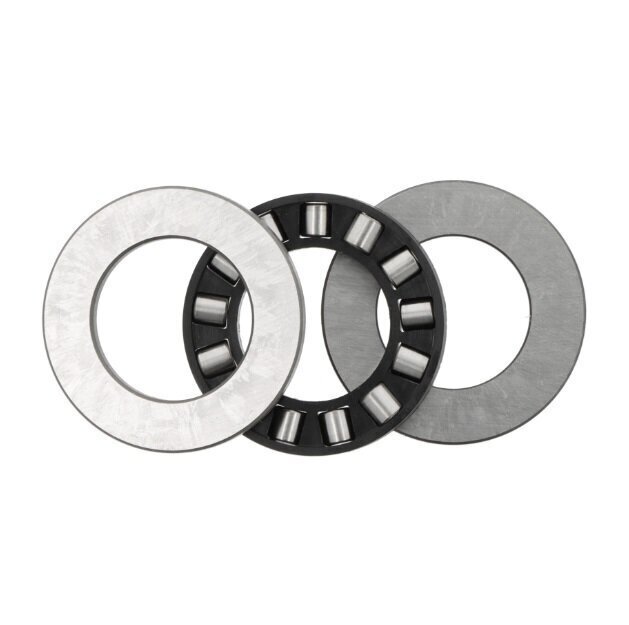

81126-TVPB NKE Axial Cylindrical Roller Thrust Bearing 130x170x30mm
Help Articles
Also Try
XL Timing Belts (1/5inch)
XL Section Timing Pulleys (5.08mm)
Ball Bearings
Housed & Flanged Bearings
Oilite Bearing Bushes
Buy Now
Qty:
Product Specification
Angular adjustment
Non-angle adjustable
Brand
NKE
Cage
Polyamide cage
Inside Dia
130mm
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
170mm
Product range
Complete axial cylindrical roller bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
30mm
Reference
81126 -TVPB
Additional Reference:
10161646
Quick Order Code
BB-527355
Product Description
Cylindrical roller thrust bearings are best suited for arrangements that involve the support of heavy axial loads. In addition, they are relatively insensitive to shock loads, are very stiff - requiring little axial space. As standard they are available as single direction bearings and can only accommodate axial loads acting in one direction.The cylindrical surface of the rollers is slightly relieved towards the ends, which virtually eliminates damaging edge stresses. These bearings are of separable design which enables the ease of mounting and assembly of the individual components.
