Quick Code: BB-557854

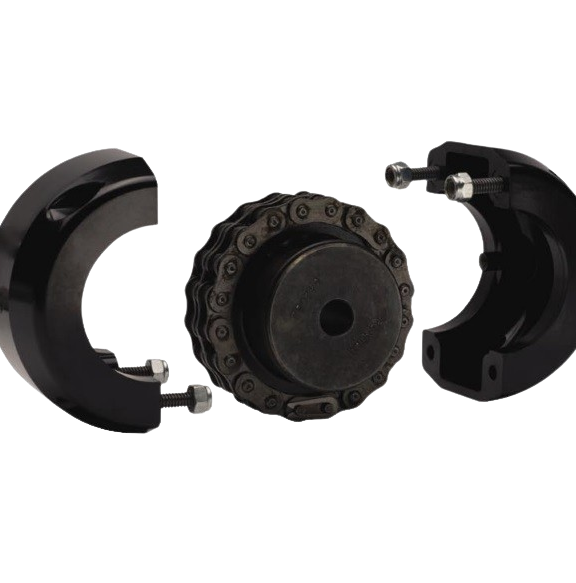

C81BBK Renold Chainflex Complete Coupling with Cover RSB/Solid
Also Try
HRC Couplings
Spider Jaw Couplings
Tyre Couplings
Nylon Sleeve Gear Couplings
Rigid Couplings
C Belts (22mm x 14mm)
H Section Timing Pulleys (12.7mm)
Buy Now
Qty:
Product Specification
Bore Size - Min/Max
Min - 24mm/Max - 80mm
Boss Dia
117mm
Half Body Width
63mm
Overall Dia
206mm
Overall Width
142.2mm
Reference
10010019
Quick Order Code
BB-557854
Product Description
The C81BBK Renold Chainflex Complete Coupling with Cover represents a robust and versatile power transmission solution designed for demanding industrial applications. Engineered to deliver exceptional performance in challenging working environments, this all-metal coupling combines flexibility with remarkable torsional stiffness.
Key Features:
- Hardened steel sprockets for enhanced durability
- Renold Duplex Chain for reliable power transmission
- Moulded cover providing additional protection
- Plain bore configuration
- Torsionally stiff design for positive drive connections
- Excellent misalignment capabilities
- Taper Bush bore options available
Technical Specifications:
- Bore Size Range: 24mm - 80mm
- Boss Diameter: 117mm
- Half Body Width: 63mm
- Overall Diameter: 206mm
- Overall Width: 142.2mm
- Reference Number: 10010019
Ideal Applications:
- Industrial Fans
- Material Feeders
- Kiln Dryers
- Line Shaft Machinery
- Pump Drive Systems
Designed for environments requiring high torque capacity and long-term reliability, the C81BBK coupling offers easy installation and maintenance. Its hardened teeth and all-metal construction ensure superior performance in hostile industrial settings, making it an excellent choice for engineers seeking a dependable power transmission solution.
