Castors
Industrial Castors
Cast Iron Castors
Quick Code: BB-565863

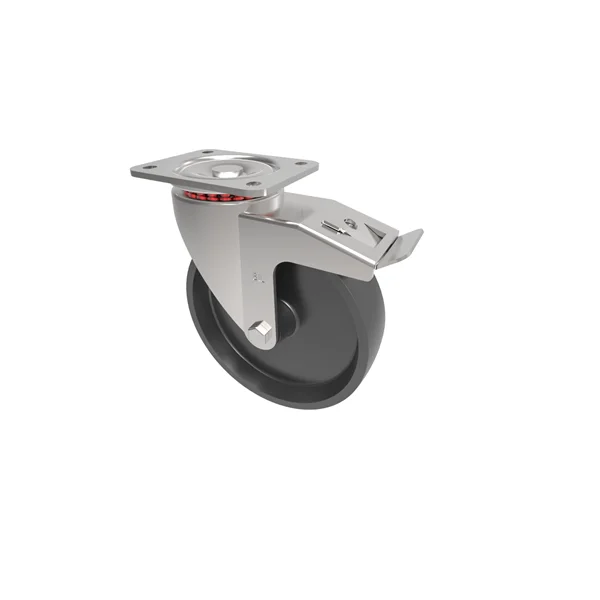

BZH125CISWBHT Cast Iron Plate Swivel Castor Brake 125mm 350kg Load
Also Try
Blue Elastic Rubber
Nylon Castor Wheels
Black Tyre Steel Centre
Polyurethane Tyre, White Centre
Poly Tyre Cast Iron Centre
Buy Now
Qty:
Product Specification
Height
155
Hole Centres
80x60
Max Load
400kg
Top Plate/Bolt Hole Size
105x86
Wheel Dia
125
Brand
BIL
Quick Order Code
BB-565863
Product Description
A robust and high-performance cast iron plate swivel castor designed for demanding industrial applications, offering exceptional durability and reliability in challenging environments. This heavy-duty castor features a pressed steel swivel construction with a total lock brake system, providing superior mobility and load control for professional material handling needs.
Key Features:
- Cast iron wheel with plain bore for exceptional strength
- Swivel design with top plate mounting for versatile positioning
- Integrated total lock brake for enhanced safety and load stability
- High-temperature performance rated up to 200°C
- High-temperature grease lubrication
Technical Specifications:
- Wheel Diameter: 125mm
- Wheel Tread Width: 38mm
- Total Height: 155mm
- Top Plate Size: 105mm x 86mm
- Mounting Hole Centers: 80mm x 60mm
- Maximum Load Capacity: 400kg
- Temperature Rating: Up to 200°C
Ideal Applications:
- High-temperature industrial equipment
- Manufacturing machinery
- Heavy-duty material handling trolleys
- Industrial workshop environments
- Machinery requiring precise movement and load control
Note: Swivel head does not include additional seals, designed for robust industrial use with high-temperature performance.
