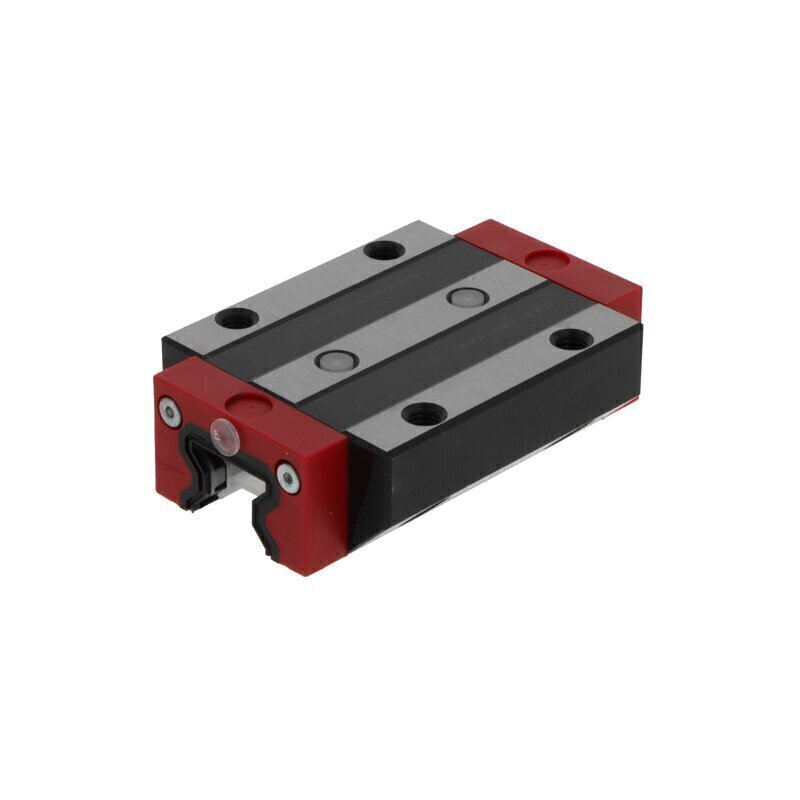

R18532132X RWD-025-FLS-C1-H-2 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball-/Roller rows
Four Row
Brand
Bosch Rexroth
Design
Flange carriage
Material
Carbon Steel
Seal
End Seals
Series
25 series
Temperature range
-10 to +100 °C
Type of rolling elements
Rollers
Version
Long design
Reference
R18532132XRWD025FLSC1H2
Additional Reference:
10203919
Quick Order Code
BB-532634
Product Description
The R18532132X RWD-025-FLS-C1-H-2 (CS) Bosch Rexroth Carriage is a precision-engineered flange carriage designed for demanding linear motion applications requiring superior load capacity and high-precision guidance. This robust 25 series carriage combines advanced engineering with practical functionality, featuring a long design configuration ideal for extended travel distances and heavy-duty industrial environments.
Key Specifications:
- Series: 25 series - compact yet capable linear carriage platform
- Design: Flange carriage with long design configuration for extended linear travel and increased structural rigidity
- Rolling Elements: Roller type in four-row arrangement for superior load distribution and exceptional handling of heavy loads
- Tolerance Class: H (High-Precision Class) for demanding precision requirements and superior accuracy
- Material: Carbon steel construction for exceptional durability and strength in standard and demanding operating environments
- Seal Type: End seals for effective contamination protection while maintaining smooth, reliable operation
- Operating Temperature Range: -10°C to +100°C for diverse industrial applications
- Mounting: Flange design allows direct coupling to rails and systems for flexible integration
Material & Performance:
- Four-row roller configuration delivers exceptional load capacity and stability
- Long design provides extended motion range and increased moment resistance
- High-precision tolerance class ensures accurate positioning and repeatable performance
- Relubrication capability via lubrication nipple for extended service life and easy maintenance
Ideal Applications:
This carriage is well-suited for:
- Heavy-duty industrial automation systems requiring robust linear guidance
- CNC machinery and precision metalworking equipment
- Automated assembly lines with extended travel requirements
- Industrial robotics and material handling systems
- Manufacturing equipment operating in demanding production environments
- Systems requiring high load capacity combined with high-precision positioning
- Applications with extended linear motion requirements in space-efficient installations
As a Bosch Rexroth product, this carriage meets the highest engineering standards and integrates seamlessly into modern linear motion systems requiring both power and precision.
Reference: R18532132XRWD025FLSC1H2
