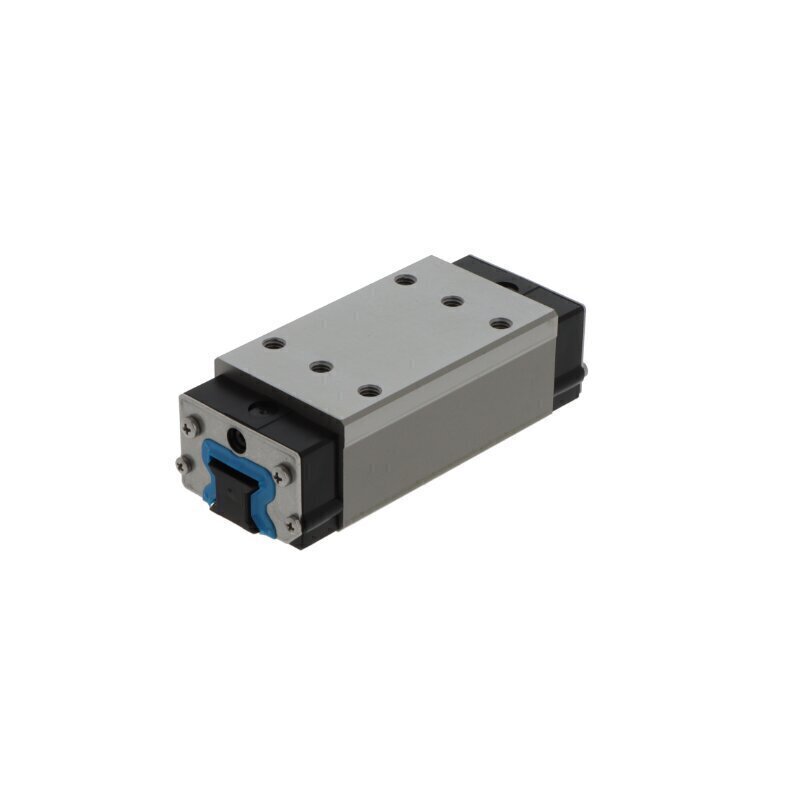

R18245312X RWD-055-SLH-C3-S-2 (CS) Bosch Rexroth Carriage
R18245312X RWD-055-SLH-C3-S-2 (CS) Bosch Rexroth Carriage
This heavy-duty Bosch Rexroth block carriage delivers exceptional load-carrying capacity and precision performance for demanding industrial linear motion applications. Part of the robust 55 series family, this high, narrow, short configuration carriage combines advanced engineering with high-precision tolerances, making it an ideal choice for systems requiring superior rigidity, high preload capability, and reliable positioning under demanding operational conditions.
Key Specifications:
- Design: Block carriage - optimized for direct mounting and maximum load distribution
- Series: 55 series - heavy-duty platform engineered for demanding industrial applications
- Version: High, Narrow, Short (SLH) type - specialized configuration for constrained spaces requiring vertical clearance
- Rolling Elements: Four row roller bearings providing superior load capacity, exceptional rigidity, and enhanced shock resistance compared to ball bearing designs
- Material: Carbon steel construction for robust durability and consistent performance under heavy loads
- Preload: High preload - optimized for maximum rigidity and minimal deflection in precision applications
- Tolerance Class: H (High-Precision Class) - ensuring superior accuracy for precision-demanding systems
- Sealing: End seals protecting internal components against contamination and extending service life
- Operating Temperature Range: -10 to +100°C, accommodating diverse environmental conditions
- Lubrication: Relubricated via lubrication nipple for convenient maintenance and extended operational intervals
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is well-suited for heavy-duty industrial applications including large-format CNC machine tools, high-load automation systems, heavy-duty press machinery, industrial gantry systems, heavy material handling equipment, and precision assembly machinery where high load capacity, superior rigidity, and high-precision positioning are essential requirements.
