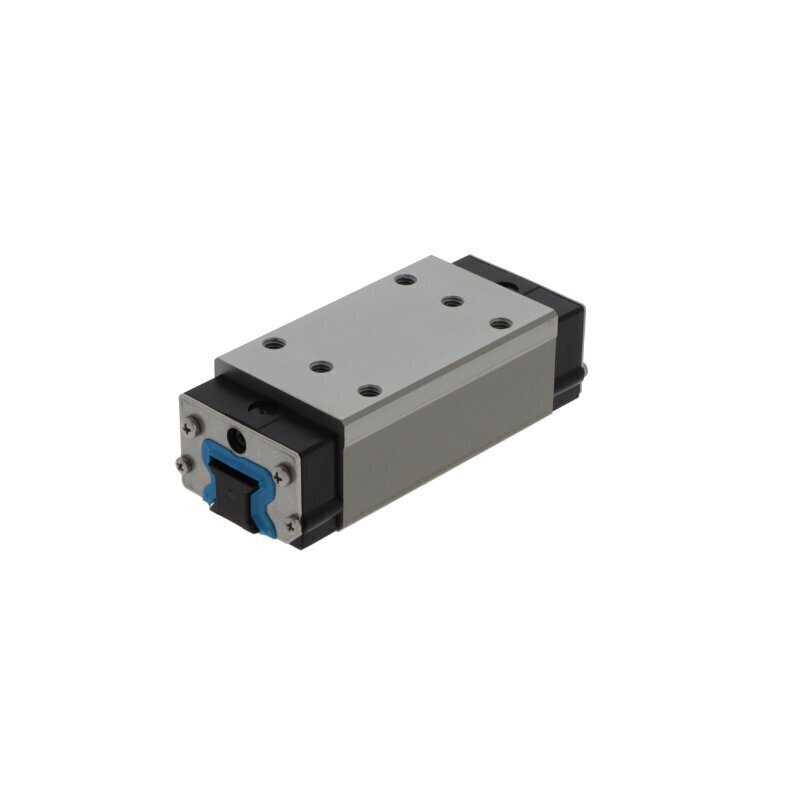

R18242232X RWD-025-SLH-C2-H-2 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Medium preload
Seal
End Seals
Series
25 series
Temperature range
-10 to +100 °C
Tolerance class
H (High-Precision Class)
Type of rolling elements
Rollers
Version
High, narrow, short type
Reference
R18242232XRWD025SLHC2H2
Additional Reference:
10190785
Quick Order Code
BB-531412
Product Description
The R18242232X RWD-025-SLH-C2-H-2 (CS) Bosch Rexroth Carriage is a high-precision linear carriage engineered for demanding industrial applications requiring superior accuracy and load capacity. This advanced 25 series block carriage combines four-row roller guidance with high-precision tolerancing to deliver exceptional performance in precision motion control systems.
Key Specifications:
- Series: 25 series
- Design: Block carriage with high, narrow, short configuration
- Rolling Elements: Four row rollers for superior load distribution and stability
- Preload: Medium preload for optimal load capacity and minimal play
- Tolerance Class: H (High-Precision Class) for demanding accuracy requirements
- Ball Chain: Without ball chain for streamlined design
Material & Durability:
- Material: Carbon steel construction for robust, long-lasting performance
- Sealing: End seals protect against contamination and debris ingress
- Operating Temperature Range: -10 to +100°C
- Lubrication: Relubrication capable via lubrication nipple for extended service life and reduced maintenance intervals
Ideal Applications:
This carriage is well-suited for:
- High-precision industrial automation and CNC machinery
- Compact systems with space constraints requiring narrow, short carriage designs
- Applications demanding medium to high load capacity with exceptional accuracy
- Precision positioning systems in manufacturing and assembly operations
- Heavy-duty linear motion requiring four-row roller guidance
- Equipment operating in temperature-controlled industrial environments
- Systems requiring reliable, maintainable linear guidance with minimal downtime
As a Bosch Rexroth product, this carriage meets the highest engineering standards and integrates seamlessly into modern precision linear motion systems.
