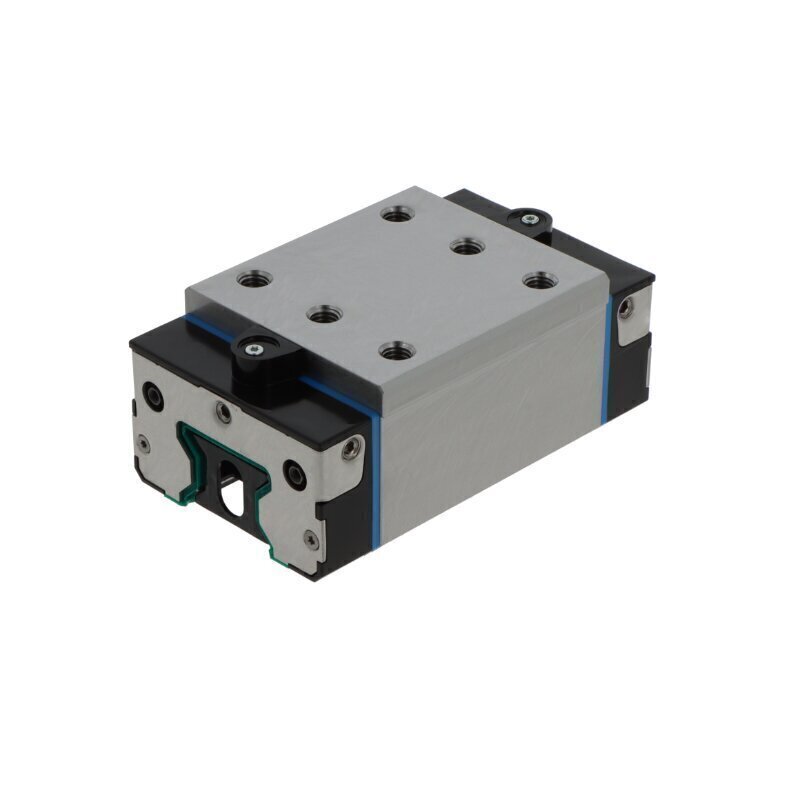

R18215232X RWD-055-SNH-C2-H-2 (CS) Bosch Rexroth Carriage
R18215232X RWD-055-SNH-C2-H-2 (CS) Bosch Rexroth Carriage
This precision-engineered block carriage from Bosch Rexroth is designed to deliver exceptional linear motion performance for demanding industrial applications. Part of the robust 55 series, this carriage combines advanced roller bearing technology with a distinctive high and slimline design to provide reliable linear guidance for applications requiring superior load capacity, precision accuracy, and optimized space utilization in heavy-duty industrial environments.
Key Specifications:
- Series: 55 series - heavy-duty design for demanding industrial applications
- Design: Block carriage configuration with high and slimline profile
- Rolling Elements: Four-row roller bearings for superior load distribution and exceptional heavy-duty performance
- Tolerance Class: H (High-Precision Class) for demanding accuracy and tight positioning requirements
- Preload: Medium preload for optimal load distribution and minimal play while maintaining smooth operation
- Material: Carbon steel construction for exceptional strength, durability, and load-carrying capacity
- Sealing: End seals to protect against contamination and extend service life
- Lubrication: Relubrication capable via integrated lubrication nipple for convenient on-site maintenance and extended service intervals
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C for versatile environmental compatibility
- Reference Number: R18215232XRWD055SNHC2H2
Features & Benefits:
- High Load Capacity: Four-row roller bearing arrangement delivers superior load distribution, making it ideal for heavy-duty applications
- Precision Performance: H-class tolerance ensures exceptional accuracy for demanding positioning and guidance requirements
- Space-Optimized Design: High and slimline configuration maximizes available space while maintaining structural integrity and load capacity
- Medium Preload Advantage: Optimal balance between load distribution and smooth operation, reducing vibration and maintaining dimensional stability
- Easy Maintenance: Integrated lubrication nipple enables convenient on-site relubrication, minimizing downtime and extending component life
- Robust Construction: Carbon steel material provides excellent durability and strength for challenging industrial environments
Ideal Applications:
This carriage is well-suited for:
- Heavy-duty industrial automation and manufacturing systems requiring high load capacity
- Large format machine tools and CNC equipment demanding precision and durability
- High-capacity conveyor systems and material handling applications
- Industrial presses, injection molding machines, and processing equipment
- Assembly line systems where both space efficiency and substantial load-carrying capability are critical
- Precision machinery installations requiring superior accuracy combined with heavy-duty performance
- Transfer mechanisms and positioning systems in large-scale manufacturing environments
The combination of four-row roller bearings, medium preload design, high-precision tolerance class, and the specialized high and slimline configuration makes this carriage an exceptional solution for demanding industrial environments where superior load capacity, precision guidance, and optimized spatial footprint cannot be compromised.
Brand: Bosch Rexroth
