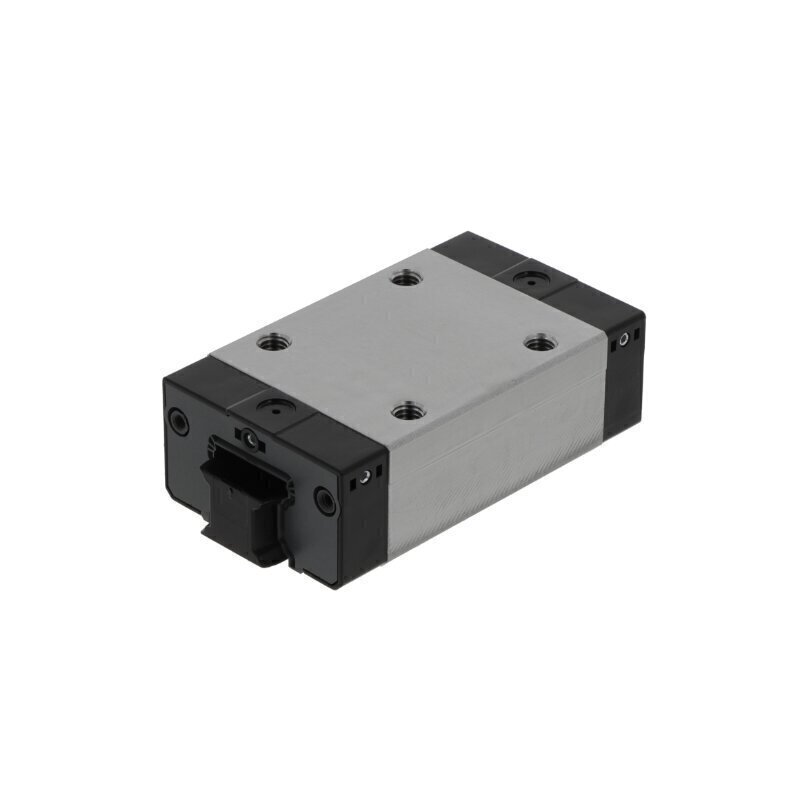

R169481310 KWC-020-SNN-C1-H-2 (CS) Bosch Rexroth Carriage
R169481310 KWC-020-SNN-C1-H-2 (CS) Bosch Rexroth Carriage
This precision-engineered block carriage from Bosch Rexroth delivers exceptional linear motion performance in a compact, space-efficient design. Part of the versatile 20 series lineup, this carriage combines slimline and low-profile engineering with high-precision accuracy, making it ideal for applications where compact installation and smooth, controlled movement are essential.
Key Specifications:
- Design: Block carriage with slimline and low design configuration
- Series: 20 series
- Rolling Elements: Ball type with double row arrangement for balanced load distribution
- Preload: Light preload for reduced friction while maintaining precision and smooth operation
- Tolerance Class: H (High-Precision Class) for superior accuracy and demanding positioning requirements
- Material: Carbon Steel for durability and reliable load-bearing capacity
- Sealing: End seals for effective contamination protection and long-term performance
- Operating Temperature: -10 to +100°C for versatile application environments
- Lubrication: Can be relubricated via lubrication nipple for convenient maintenance and extended service life
- Ball Chain: Without ball chain for a streamlined, compact footprint
Ideal Applications:
This carriage is well-suited for precision automation systems, compact machinery installations, medical device equipment, and industrial positioning applications where space constraints are critical. The combination of slimline design, light preload, and double-row ball arrangement makes it particularly effective for applications requiring smooth motion with minimal play in confined environments. Ideal for machine tools, semiconductor equipment, and precision assembly systems where compact size and high-precision accuracy are paramount.
The light preload design minimizes friction while the high-precision tolerance class ensures reliable performance in demanding industrial applications, making this carriage a dependable choice for modern, space-optimized linear motion systems.
