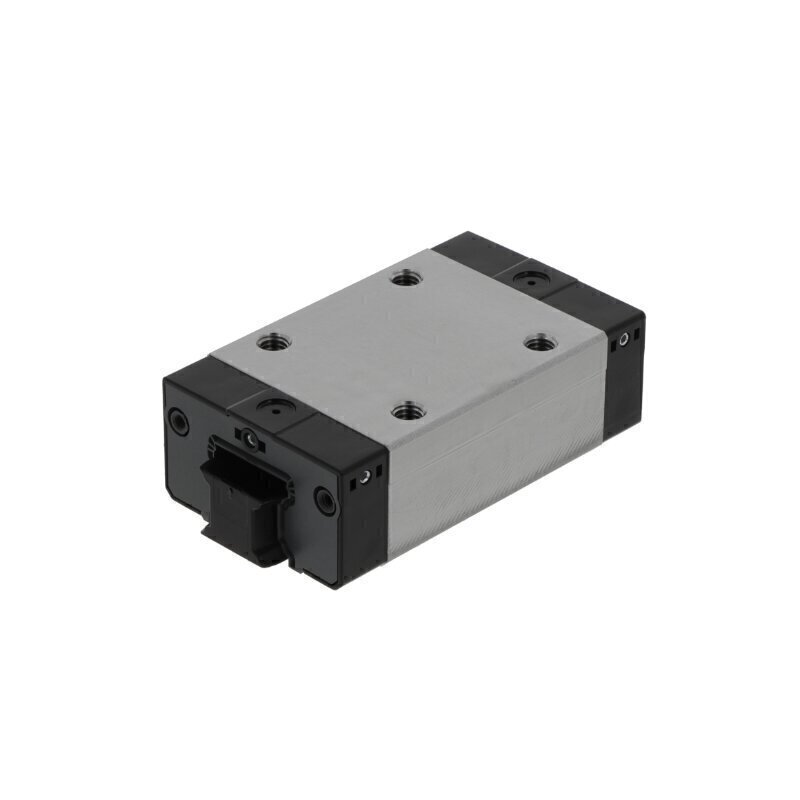

R169421310 KWC-025-SNN-C1-H-2 (CS) Bosch Rexroth Carriage
R169421310 KWC-025-SNN-C1-H-2 (CS) Bosch Rexroth Carriage
This precision-engineered block carriage from Bosch Rexroth is part of the 25 series linear carriage range, specifically designed for applications requiring high accuracy with a compact, low-profile footprint. Featuring a slimline and low design configuration, this carriage delivers exceptional performance in space-constrained industrial automation, machinery, and positioning systems while maintaining superior precision tolerances and smooth operational characteristics.
Key Specifications:
- Series: 25 series
- Design Type: Block carriage with slimline and low design for minimal vertical envelope
- Rolling Elements: Double-row ball bearings for smooth, precise linear motion and balanced load distribution
- Preload: Light preload for reduced friction, smooth operation, and optimized precision positioning
- Tolerance Class: H (High-Precision Class) for superior accuracy and repeatability
- Material: Carbon steel construction for durability and reliable performance
- Sealing: End seals to protect against contaminants and extend service life
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C for versatile application environments
- Lubrication: Relubrication capability via integral lubrication nipple for extended maintenance intervals and reduced downtime
Ideal Applications:
This carriage is well-suited for precision automation equipment, CNC machinery, compact assembly systems, material handling equipment, semiconductor manufacturing systems, and any application requiring reliable high-precision linear motion in height-restricted installations. The light preload configuration and slimline low design make it particularly effective for applications where minimal vertical clearance, compact geometry, low friction, and high accuracy are critical requirements.
Brand: Bosch Rexroth | Reference Number: R169421310KWC025SNNC1H2
