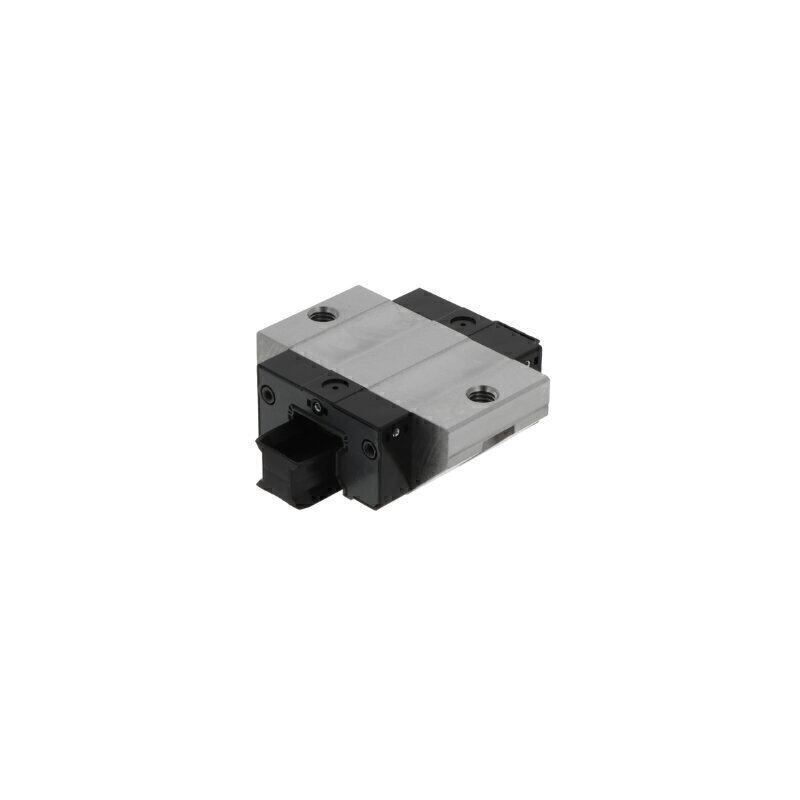

R166329310 KWC-025-FKN-C0-H-2 (CS) Bosch Rexroth Carriage
The R166329310 KWC-025-FKN-C0-H-2 (CS) Bosch Rexroth Carriage is a precision-engineered flange carriage designed for compact linear motion applications requiring high accuracy and reliable performance. Part of the versatile 25 series, this carriage features a low and short design configuration, making it an excellent choice for space-constrained installations where minimal height and length are critical requirements while maintaining superior precision capabilities.
Key Specifications:
- Series: 25 series for compact to medium-duty applications
- Design: Flange carriage with low and short design configuration for minimal footprint
- Rolling Elements: Double-row ball bearings for smooth, consistent linear motion
- Preload: Without preload for low friction operation and energy efficiency
- Material: Carbon steel construction for excellent strength and durability
- Tolerance Class: H (High-Precision Class) for superior accuracy and tight positional tolerances
- Sealing: End seals to protect against contamination and extend service life
- Operating Temperature: -10 to +100°C for versatile environmental applications
- Lubrication: Relubrication capability via integrated lubrication nipple for extended maintenance intervals and service life
- Ball Chain: Without ball chain configuration
- Version: Low and short design for ultra-compact mounting requirements
Applications:
This flange carriage is well-suited for precision automation equipment, compact CNC systems, packaging machinery, semiconductor manufacturing, robotic positioning systems, and industrial automation where high-precision linear motion must be achieved within strict space limitations. The without-preload configuration ensures minimal friction, making it particularly valuable for applications prioritizing smooth travel and energy efficiency. The low and short design variant is especially advantageous for applications with height and length constraints while maintaining the high-precision performance required for exacting industrial processes.
Maintenance Advantage:
The relubrication capability extends service life and reduces downtime, allowing for easy maintenance through the dedicated lubrication nipple, ensuring optimal performance throughout the product lifecycle.
Reference: R166329310KWC025FKNC0H2 | Brand: Bosch Rexroth
