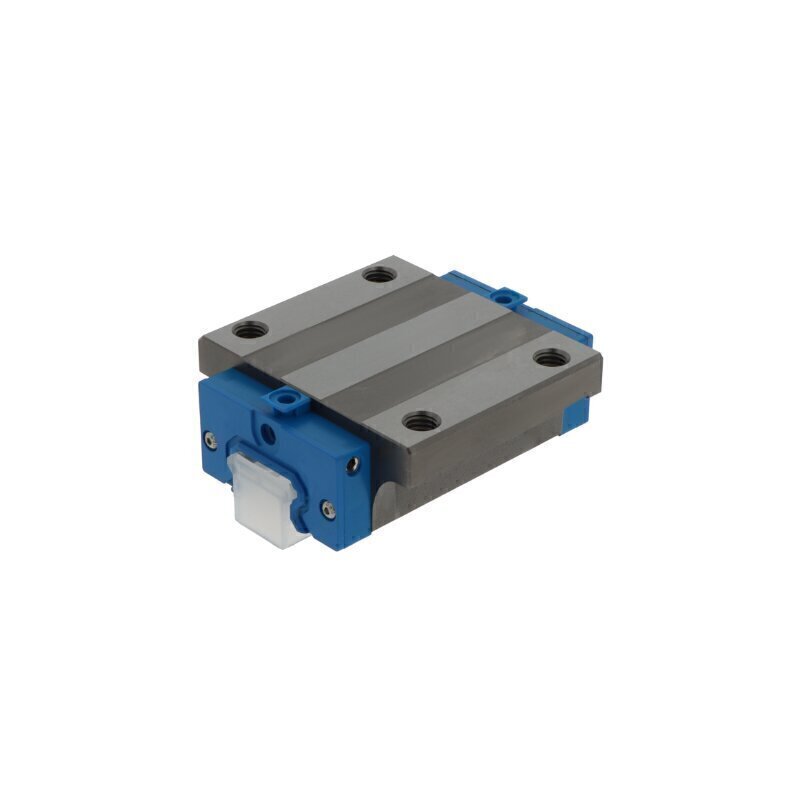

R165331422 KWD-035-FLS-C1-N-1 (CS) Bosch Rexroth Carriage
R165331422 KWD-035-FLS-C1-N-1 (CS) Bosch Rexroth Carriage
This robust flange carriage from Bosch Rexroth is engineered for demanding linear motion applications requiring reliable performance, durability, and consistent operation. Part of the advanced 35 series lineup, this carriage combines proven engineering excellence with practical functionality to deliver dependable results across a comprehensive range of industrial automation, heavy machinery, and precision motion control systems.
Key Specifications:
- Series: 35 series heavy-duty platform
- Design: Flange carriage, long design configuration for extended travel distances, optimized space utilization, and robust load handling
- Rolling Elements: Ball type, double row arrangement for smooth, consistent linear motion and balanced load distribution
- Preload: Light preload for optimized performance, reduced friction, and improved load handling capabilities
- Material: Carbon steel construction for exceptional durability and reliable performance in demanding industrial environments
- Tolerance Class: Normal Class for standard accuracy requirements
- Seal Type: End seals for effective contamination protection and extended service life
- Ball Chain: Supplied with ball chain option for enhanced guidance and load stability during extended travel
- Operating Temperature Range: -10 to +100°C for versatile environmental compatibility
- Lubrication: Relubrication capability via integrated lubrication nipple for extended service life and simplified maintenance intervals
Ideal Applications:
This carriage is well-suited for heavy-duty linear guidance systems, large-scale material handling equipment, substantial automation machinery, and industrial applications where load capacity, reliability, and extended stroke lengths are critical. The long design flange configuration combined with ball chain support makes it particularly ideal for systems requiring extended travel distances, robust mounting, seamless integration into existing frameworks, and exceptional performance in high-demand linear motion assemblies. The 35 series sizing provides enhanced load-bearing capabilities, making this carriage suitable for applications ranging from packaging machinery to industrial automation platforms where durability and consistent operation are paramount.
