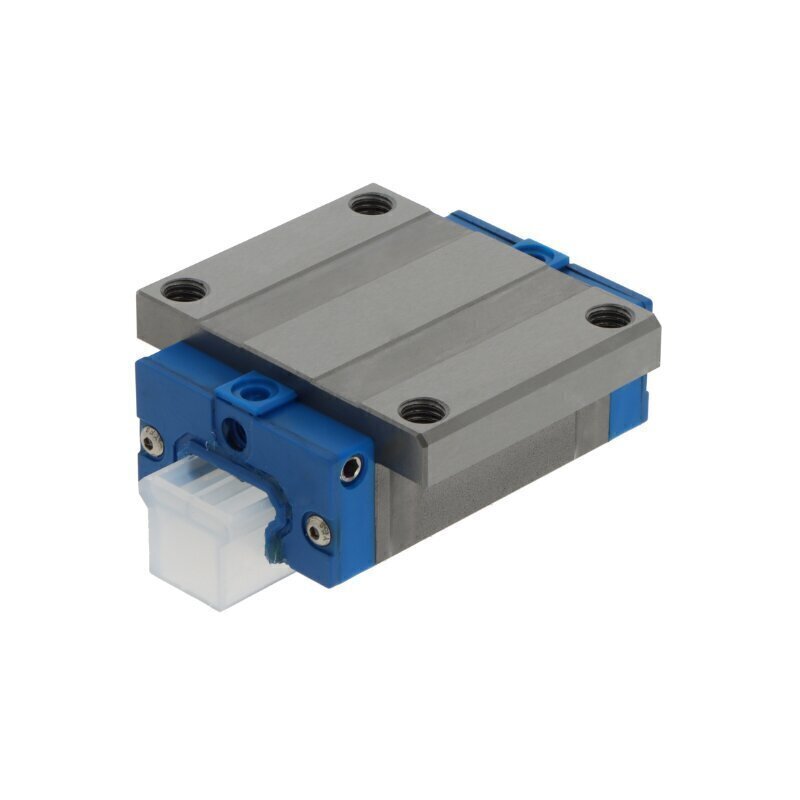

R165181420 KWD-020-FNS-C1-N-1 (CS) Bosch Rexroth Carriage
Also Try
Hiwin Carriages
THK Carriages
INA Carriages
NSK Carriages
Schneeberger Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
R165181420KWD020FNSC1N1
Additional Reference:
10130957
Quick Order Code
BB-518787
Product Description
The R165181420 KWD-020-FNS-C1-N-1 (CS) Bosch Rexroth Carriage is a precision-engineered linear carriage designed for demanding motion control applications. This standard flange carriage combines robust construction with reliable performance for medium-duty linear motion systems.
Key Specifications:
- Series: 20 series
- Design: Flange carriage
- Rolling Elements: Ball bearings in double row configuration
- Preload: Light preload for smooth, responsive motion
- Material: Carbon steel for durability and strength
- Seal Type: End seals for effective contamination protection
- Tolerance Class: Normal Class
- Operating Temperature Range: -10 to +100°C
- Ball Chain: Without ball chain
- Version: Standard configuration
Features & Benefits:
- Relubrication capability via lubrication nipple for extended service life and reduced maintenance intervals
- Double row ball bearing arrangement for balanced load distribution and smooth operation
- Flange carriage design suitable for space-constrained applications requiring horizontal or vertical mounting
- Light preload ensures minimal friction while maintaining precision and stability
- Carbon steel construction provides excellent load-carrying capacity and reliability
Ideal Applications:
This carriage is well-suited for industrial automation, CNC machinery, packaging equipment, and other precision linear motion applications requiring dependable performance in moderate operating environments.
