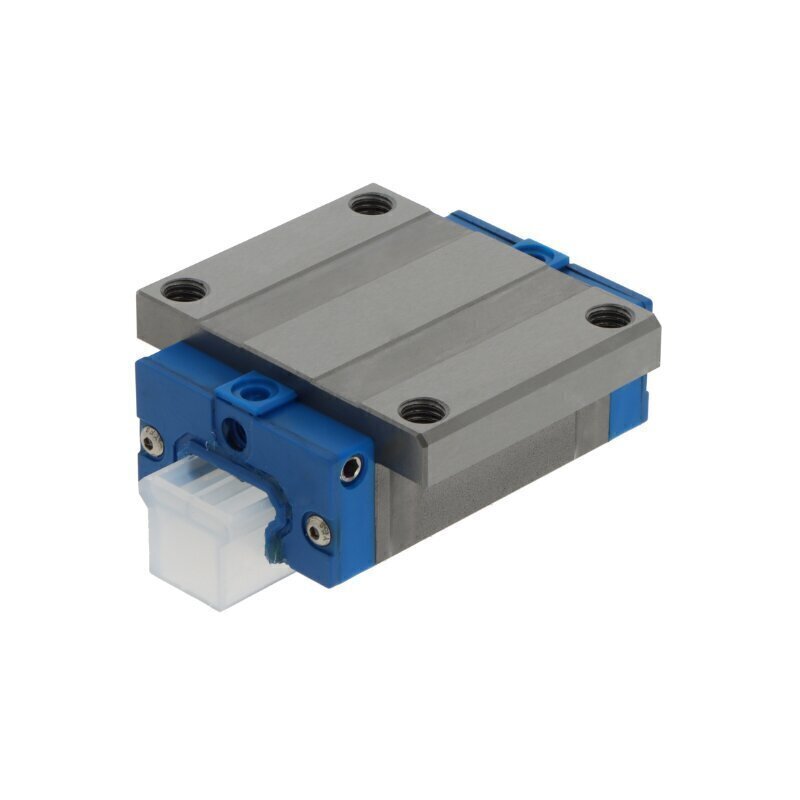

R165171420 KWD-030-FNS-C1-N-1 (CS) Bosch Rexroth Carriage
R165171420 KWD-030-FNS-C1-N-1 (CS) Bosch Rexroth Carriage
This robust flange carriage from Bosch Rexroth is engineered to deliver reliable linear motion performance in a versatile mid-range configuration. The KWD-030-FNS-C1-N-1 combines proven engineering with practical design features, making it an ideal choice for industrial applications requiring dependable operation and smooth linear movement.
Key Specifications:
- Series: 30 series (mid-range capacity)
- Design Type: Flange carriage in standard version
- Rolling Elements: Ball bearing arrangement in double row configuration
- Preload: Light preload for smooth, consistent operation
- Material: Carbon steel construction
- Tolerance Class: Normal Class
- Sealing: End seals for effective contamination protection
- Operating Temperature Range: -10 to +100°C
- Lubrication: Relubrication capable via integral lubrication nipple
- Ball Chain: Without ball chain
Applications:
The 30 series flange carriage design is particularly well-suited for:
- Industrial automation and machinery systems
- Manufacturing and assembly line applications
- Machine tool systems
- Material handling equipment
- Standard industrial linear motion systems
- General-purpose positioning equipment
With its combination of practical tolerance standards, smooth double-row ball operation, convenient maintenance capabilities via relubrication nipple, and flange mounting design, this Bosch Rexroth carriage delivers dependable linear motion performance for industrial applications demanding reliability and cost-effective operation.
