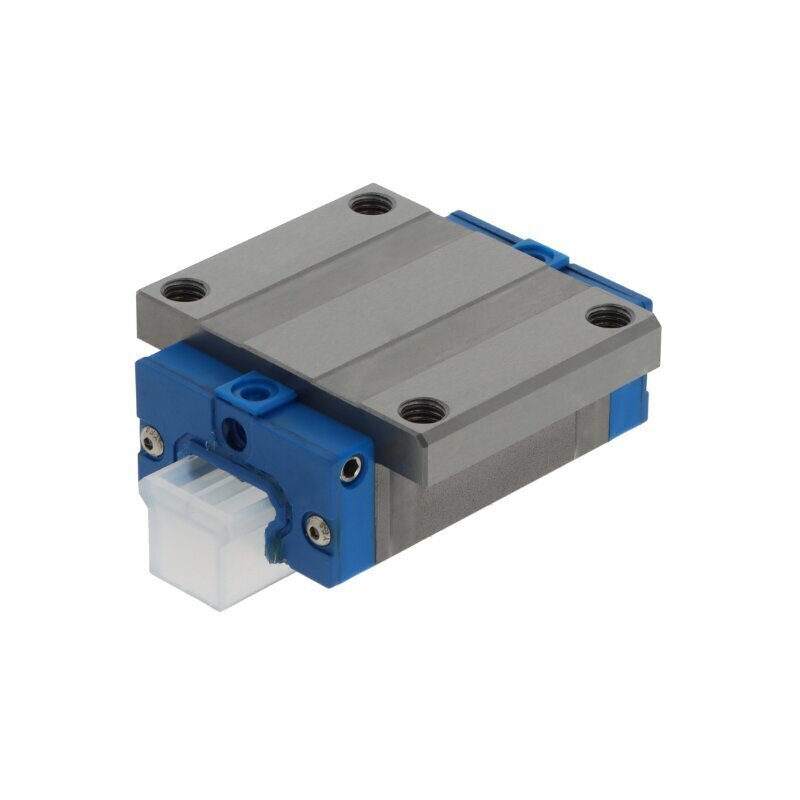

R165122820 KWD-025-FNS-C2-X-1 (CS) Bosch Rexroth Carriage
R165122820 KWD-025-FNS-C2-X-1 (CS) Bosch Rexroth Carriage
This precision flange carriage from Bosch Rexroth delivers exceptional accuracy and reliability for demanding linear motion applications. Part of the versatile 25 series lineup, the KWD-025-FNS-C2-X-1 combines robust engineering with extra-precision performance, making it ideal for applications where high accuracy and consistent load handling are critical requirements.
Key Specifications:
- Series: 25 series
- Design: Flange carriage, standard version for flexible mounting integration
- Rolling Elements: Ball type, double row arrangement for smooth, precise linear motion
- Preload: Medium preload for optimal load distribution, reduced play, and enhanced accuracy
- Material: Carbon steel construction for durability and reliable performance
- Tolerance Class: X (Extra Precision Class) for applications demanding superior accuracy and tight tolerances
- Seal Type: End seals for effective contamination protection and extended operational life
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C for versatile environmental compatibility
- Lubrication: Relubrication capability via lubrication nipple for convenient maintenance and extended service intervals
Ideal Applications:
This carriage is well-suited for precision automation equipment, high-accuracy machinery assemblies, semiconductor manufacturing systems, precision measurement instruments, and industrial applications where tight tolerances, smooth operation, and reliable performance are essential. The flange design enables straightforward mounting and integration into complex linear guidance systems requiring extra-precision guidance.
