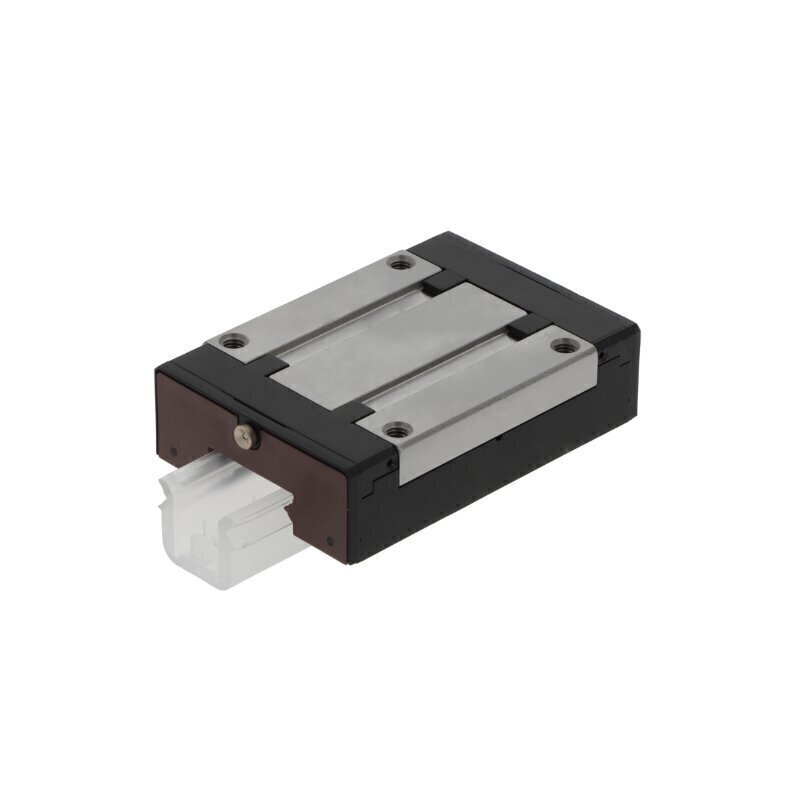

R163221320 KWD-025-SNS-C1-H-1 (AL) Bosch Rexroth Carriage
R163221320 KWD-025-SNS-C1-H-1 (AL) Bosch Rexroth Carriage
This precision-engineered linear carriage from Bosch Rexroth delivers exceptional performance for applications requiring high accuracy in a lightweight, compact package. The KWD-025-SNS model features an aluminium construction that combines durability with reduced weight, making it an ideal choice for precision positioning systems, automated machinery, and industrial automation where space efficiency and accuracy are paramount.
Key Specifications:
- Series: 25 series – compact carriage for versatile, space-constrained applications
- Design: Block carriage in small configuration for flexible mounting in confined spaces
- Material: Aluminium construction for lightweight performance without compromising durability
- Rolling Elements: Precision ball bearings in double row arrangement for smooth, reliable linear motion
- Preload: Light preload for balanced load capacity and smooth operation
- Tolerance Class: H (High-Precision) – ensures exceptional accuracy for demanding precision applications
- Sealing: End seals for effective contamination protection
- Operating Temperature Range: -10 to +100°C for versatile environmental conditions
- Lubrication: Relubrication capable via convenient lubrication nipple for extended service life and reduced maintenance intervals
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is perfectly suited for precision linear motion systems including coordinate measuring machines, automated assembly equipment, CNC machinery, medical device automation, semiconductor positioning systems, and other applications where lightweight design combined with high-precision performance and compact mounting are essential. The aluminium construction makes it particularly advantageous for weight-sensitive applications while maintaining the rigidity and accuracy demanded by precision industrial systems.
Maintenance Advantage:
The relubrication capability extends service life and reduces downtime, allowing for easy maintenance through the dedicated lubrication nipple, ensuring optimal performance and reliability throughout the product lifecycle.
