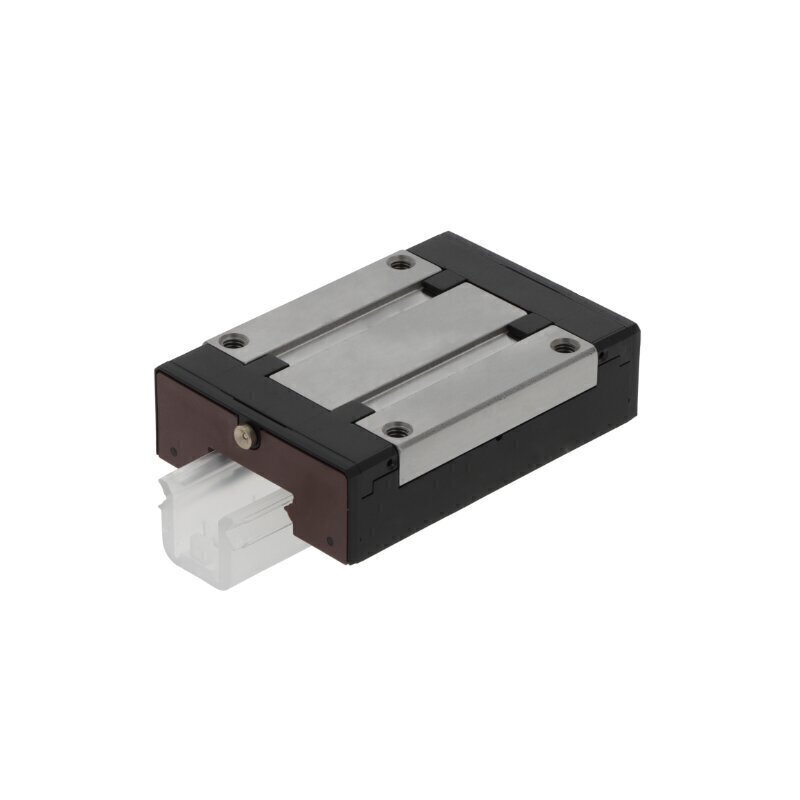

R162252310 KWC-055-SNS-C2-H-2 (CS) Bosch Rexroth Carriage
R162252310 KWC-055-SNS-C2-H-2 (CS) Bosch Rexroth Carriage
A precision-engineered block carriage from Bosch Rexroth's robust 55 series, designed to deliver exceptional performance in demanding industrial applications requiring high accuracy and reliable linear motion. This heavy-duty carriage combines advanced construction with high-precision tolerance capabilities, making it an ideal choice for machinery, automation systems, and motion control applications where superior load capacity, dimensional accuracy, and consistent performance are critical requirements.
Key Specifications:
- Design: Block carriage with small design configuration for optimized space efficiency
- Series: 55 series for substantial load-bearing capacity and durability
- Rolling Elements: Double row ball bearings for smooth, balanced linear motion and optimal load distribution
- Tolerance Class: H (High-Precision) for exceptional dimensional accuracy and tight tolerances
- Material: Carbon Steel (CS) construction providing industrial-grade strength and reliability
- Preload: Medium preload for reduced play and optimized balance between smooth operation and load capacity
- Sealing: End seals for effective protection against contamination and environmental contaminants
- Ball Chain: Without ball chain for streamlined design and straightforward operation
- Operating Temperature Range: -10 to +100°C for versatile environmental compatibility
Performance Features:
- Relubrication capability via integrated lubrication nipple for extended service life, convenient maintenance, and consistent performance
- High-precision tolerance class ensures superior dimensional accuracy suitable for precision machinery and applications requiring minimal deflection
- Medium preload configuration optimizes motion control while maintaining smooth operation under variable load conditions
- Double row ball bearing arrangement provides exceptional load distribution and stability for demanding applications
- Compact small design enables efficient space utilization without compromising performance or load-carrying capacity
Ideal Applications:
This carriage is well-suited for precision automation equipment, heavy-duty CNC machinery, industrial processing systems, high-speed assembly lines, precision positioning applications, and other demanding applications requiring accurate linear motion with high repeatability, substantial load capacity, and reliable long-term performance. The combination of high-precision tolerance capabilities and robust 55 series construction makes it particularly valuable for applications requiring both accuracy and durability in standard temperature environments.
Reference: R162252310KWC055SNSC2H2
