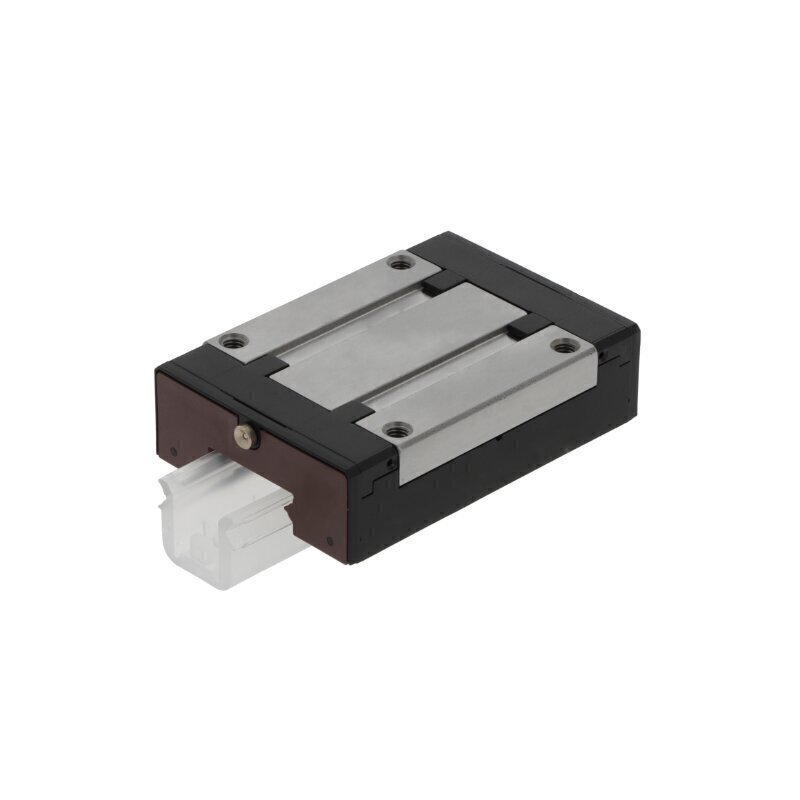

R162239320 KWD-035-SNS-C0-H-1 (CS) Bosch Rexroth Carriage
R162239320 KWD-035-SNS-C0-H-1 (CS) Bosch Rexroth Carriage
A precision-engineered linear carriage from Bosch Rexroth's robust 35 series, specifically designed to deliver high-precision motion control in compact applications. This block carriage combines the structural stability of a larger series with a small, space-efficient design, making it an excellent choice for industrial automation systems requiring superior accuracy without compromising on installation footprint.
Key Specifications:
- Design Type: Block carriage with small design configuration
- Series: 35 series
- Rolling Elements: Ball bearings in double row configuration
- Tolerance Class: H (High-Precision Class) for superior accuracy and repeatability
- Preload: Without preload for minimal friction and smooth operation
- Material: Carbon Steel construction
- Sealing: End seals for reliable protection against contaminants
- Lubrication: Relubrication capability via integrated lubrication nipple for extended service life and easy maintenance
- Operating Temperature Range: -10 to +100°C
- Configuration: Standard version without ball chain
Applications:
Ideal for precision linear motion systems requiring high-accuracy performance in space-constrained environments, including:
- Machine tool equipment with demanding positional accuracy requirements
- Industrial automation machinery requiring compact precision positioning
- Manufacturing systems where high-precision motion is essential in limited installation space
- Material handling systems requiring reliable, smooth operation with superior accuracy
- Precision positioning applications combining performance standards with space efficiency
The combination of high-precision tolerance class, zero preload for reduced friction, compact small design, and the proven reliability of the 35 series makes this carriage an excellent choice for applications demanding both accuracy and compact installation.
