Quick Code: BB-137545

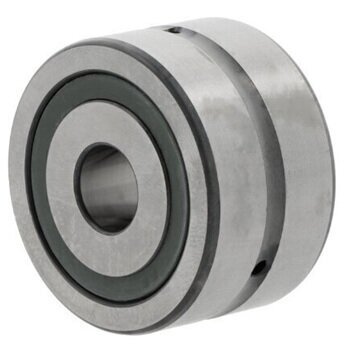

ZKLN4090-2Z-XL INA Axial Angular Contact Bearing 40mm x 90mm x 46mm
ZKLN4090-2Z-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic applications that demand exceptional accuracy, high load capacity, superior rigidity, and low friction operation. With a 60 degree contact angle, these bearings excel at supporting both radial and high axial forces simultaneously, making them ideal for demanding industrial environments.
Key Features:
- 60 degree contact angle for combined radial and axial load capacity
- Double direction load support
- Gap seals on both sides for reliable protection
- Housing bore mounted design with axial location via cover
- Maintenance-free or low-maintenance operation
Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 90mm
- Width: 46mm
- Sealing Type: Shielded
- Brand: INA
Applications:
These bearings are particularly suited for screw drives and other precision machinery requiring high rigidity and accuracy. The ZKLN bearing range is designed for direct mounting in a housing bore with axial location provided by a cover, offering a compact and efficient solution for space-constrained applications.
