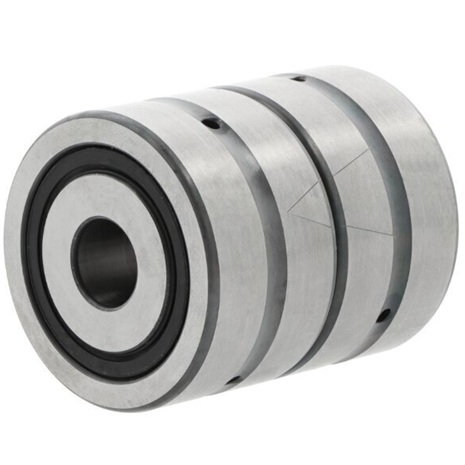

ZKLN3572-2RS-2AP-XL INA Axial Angular Contact Bearing 35mm x 72mm x 68mm
ZKLN3572-2RS-2AP-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in screw drive applications where high accuracy, exceptional load carrying capacity, superior rigidity, and low friction are essential requirements. Ideal for applications requiring maintenance-free or low-maintenance operation.
Key Performance Characteristics:
- Supports both radial and high axial forces thanks to the 60 degree contact angle design
- Double direction capability for versatile mounting configurations
- Matched pair design for optimal performance and load distribution
- Dual lip seals on both sides provide robust protection against contaminants
Design & Installation:
The ZKLN bearing series is designed for housing bore mounting with axial location of the outer ring by a cover, offering a proven integration solution for your specific application needs. The XL designation indicates an extended width design, providing increased rigidity and load capacity for demanding applications.
Specifications:
- Bore Diameter: 35mm
- Outer Diameter: 72mm
- Width: 68mm
- Sealing: Sealed with lip seals (2RS)
- Configuration: Matched pair (2AP)
- Manufacturer: INA
Ideal Applications:
Perfect for screw drive assemblies, spindle systems, precision machinery, and industrial equipment where reliable axial and radial load support is required with extended bearing life and minimal maintenance.
