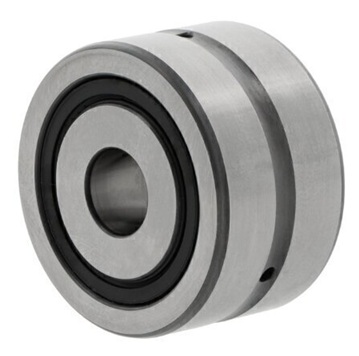

ZKLN3062-2RS-XL INA Axial Angular Contact Bearing 30mm x 62mm x 28mm
ZKLN3062-2RS-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in screw drive applications that demand high accuracy, exceptional load carrying capacity, superior rigidity, and low friction operation. The bearing delivers maintenance-free or low-maintenance performance, making it an ideal choice for demanding industrial applications.
Key Performance Characteristics:
- Supports both radial and high axial forces thanks to the 60 degree contact angle design
- Double-direction load capability for versatile mounting configurations
- Sealed design with lip seals on both sides for enhanced protection and maintenance-free operation
- High accuracy and rigidity for precision applications
- Compact yet robust dimensions (30mm bore x 62mm OD x 28mm width)
Design & Installation:
The ZKLN bearing range features a housing-mounted design where the bearing outer ring is axially located by a cover. This configuration provides excellent stability and load distribution while maintaining a compact footprint suitable for space-constrained installations. The sealed design eliminates the need for frequent maintenance in demanding industrial environments.
Specifications:
- Brand: INA
- Inner Diameter: 30mm
- Outer Diameter: 62mm
- Width: 28mm
- Sealing Type: Sealed with dual lip seals
Ideal Applications:
This bearing is particularly well-suited for:
- Precision screw drive systems
- Lead screw assemblies with combined radial and axial loading
- High-accuracy positioning equipment
- Industrial machinery requiring sealed bearings with minimal maintenance
- High-speed applications in automation and precision machinery
