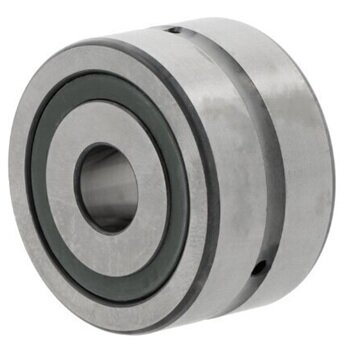

ZKLN1034-2Z-XL INA Axial Angular Contact Bearing 10mm x 34mm x 20mm
ZKLN1034-2Z-XL INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in screw drives and similar applications that demand exceptional accuracy, high load carrying capacity, rigidity, and low friction performance. The bearing delivers reliable, maintenance-free or low-maintenance operation even under demanding conditions.
Key Performance Features:
- Supports both radial forces and high axial forces with 60 degree contact angle design
- Double direction capability for bidirectional loading
- Gap seals on both sides for effective contamination protection
- XL designation indicates optimized design for extended performance and reliability
Design & Installation:
The ZKLN bearing range is specifically designed for housing bore installation, with the bearing outer ring axially located by a cover. This design provides secure mounting and flexible integration into compact assemblies.
Specifications:
- Inside Diameter: 10mm
- Outside Diameter: 34mm
- Width: 20mm
- Sealing: Shielded (gap seals both sides)
- Brand: INA
Ideal for precision machinery, industrial automation, and screw drive systems where dependable axial load handling, radial force support, and space-constrained applications are critical to performance and longevity.
