Quick Code: BB-137513

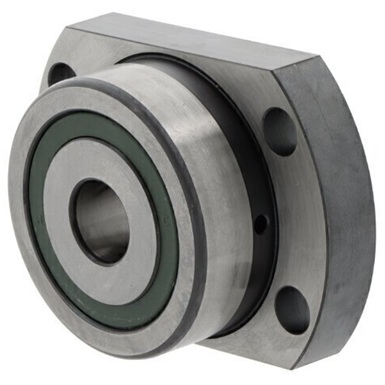

ZKLFA1263-2Z INA Axial Angular Contact Bearing 12mm x 42mm x 25mm
ZKLFA1263-2Z INA Axial Angular Contact Bearing
These precision bearings are engineered for highly dynamic operating conditions in screw drives and similar applications that demand exceptional accuracy, high load carrying capacity, superior rigidity, low friction, and maintenance-free or low-maintenance performance.
The bearings excel at supporting both radial forces and high axial forces simultaneously, thanks to their 60 degree contact angle design. This makes them ideal for demanding mechanical systems where multi-directional force management is critical.
Distinctive Design Features:
- Stepped outer ring with integrated flange
- Flattened areas on both sides of the flange for compact radial design envelope
- Minimizes space requirements in adjacent construction
- Double direction capability
- Gap seals on both sides for protection against contaminants
Specifications:
- Bore Diameter: 12mm
- Outer Diameter: 42mm
- Width: 25mm
- Sealing Type: Shielded
- Manufacturer: INA
The ZKLFA1263-2Z is particularly well-suited for compact applications where space is limited but high-performance bearing characteristics are essential. Its unique flanged design allows engineers to optimize mounting configurations while maintaining full load-carrying capabilities.
