Quick Code: BB-137520

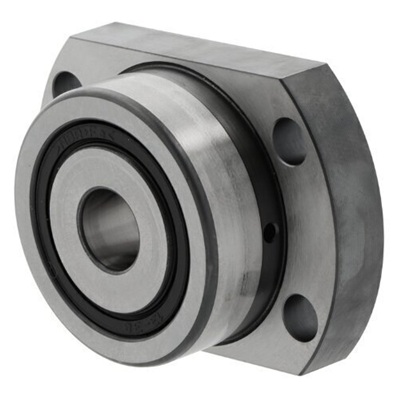

ZKLFA1263-2RS INA Axial Angular Contact Bearing 12mm x 42mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
12mm
Outside Dia
42mm
Sealing Type
Sealed
Width
25mm
Reference
ZKLFA1263-2RS
Quick Order Code
BB-137520
Product Description
ZKLFA1263-2RS INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions, particularly in screw drive applications that demand exceptional accuracy, high load-carrying capacity, superior rigidity, and low friction performance. The maintenance-free sealed design makes it ideal for demanding industrial environments.
Key Performance Characteristics:
- Supports both radial and high axial forces thanks to 60 degree contact angle
- Stepped outer ring with flattened flanged areas reduces radial design envelope, enabling compact installation
- High precision for critical alignment applications
- Bidirectional load capability
- Double-direction design for balanced performance
Sealing & Maintenance:
- Lip seals on both sides provide maintenance-free or low-maintenance operation
- Protected bearing design suitable for clean and semi-contaminated environments
Specifications:
- Bore Diameter: 12mm
- Outer Diameter: 42mm
- Width: 25mm
- Sealing Type: Sealed (2RS)
- Manufacturer: INA
Ideal Applications:
The ZKLFA1263-2RS is particularly suited for precision screw drive systems, spindle assemblies, and machine tool applications where space constraints and high dynamic loads are critical considerations.
