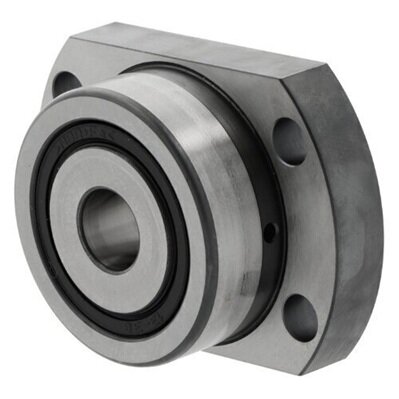

ZKLFA0850-2RS INA Axial Angular Contact Bearing 8mm x 32mm x 20mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
8mm
Outside Dia
32mm
Sealing Type
Sealed
Width
20mm
Reference
ZKLFA0850-2RS
Quick Order Code
BB-137515
Product Description
The ZKLFA0850-2RS INA Axial Angular Contact Bearing is engineered for highly dynamic operating conditions in precision applications such as screw drives that demand high accuracy, exceptional load carrying capacity, superior rigidity, and low friction performance. This maintenance-free bearing solution is ideal for applications requiring reliable, long-term operation with minimal servicing.
Key Design Features:
- 60 degree contact angle enables support of both radial and high axial forces simultaneously
- Stepped outer ring with flattened flange areas minimizes radial design envelope in adjacent construction spaces
- Double-direction capability for versatile mounting applications
- Lip seals on both sides provide enhanced protection against contamination and maintenance-free operation
Specifications:
- Bore Diameter: 8mm
- Outer Diameter: 32mm
- Width: 20mm
- Sealing Type: Sealed (Lip Seals)
- Manufacturer: INA
Ideal Applications:
This compact bearing is particularly suited for space-constrained precision machinery, servo drives, automation equipment, and industrial applications where compact design and high performance are essential requirements.
