Quick Code: BB-137503

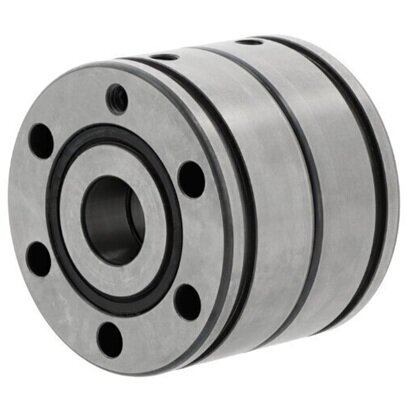

ZKLF2575-2RS-2AP-XL INA Axial Angular Contact Bearing 25mm x 75mm x 56mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
25mm
Outside Dia
75mm
Sealing Type
Sealed
Width
56mm
Reference
ZKLF2575-2RS-2AP
Quick Order Code
BB-137503
Product Description
The ZKLF2575-2RS-2AP-XL is an INA axial angular contact bearing engineered for demanding screw drive applications. This precision bearing delivers exceptional performance in highly dynamic operating environments where high accuracy, substantial load capacity, superior rigidity, and low friction are essential requirements.
Key Performance Characteristics
- Supports both radial and high axial forces thanks to the 60 degree contact angle
- Double directional load capability
- Maintenance-free or low-maintenance operation
- Matched pair configuration for optimized performance
Design & Sealing
- Lip seals on both sides for enhanced protection against contamination
- Sealed design suitable for various operating environments
Installation & Mounting
The ZKLF bearing range is designed for direct screw mounting onto adjacent construction or installation in a radial locating bore, providing flexible integration into your machinery.
Specifications
- Bore Diameter: 25mm
- Outer Diameter: 75mm
- Width: 56mm
- Manufacturer: INA
Ideal Applications
Perfect for precision screw drives, ball screws, and other high-speed rotary applications requiring reliable axial and radial load support with minimal maintenance.
