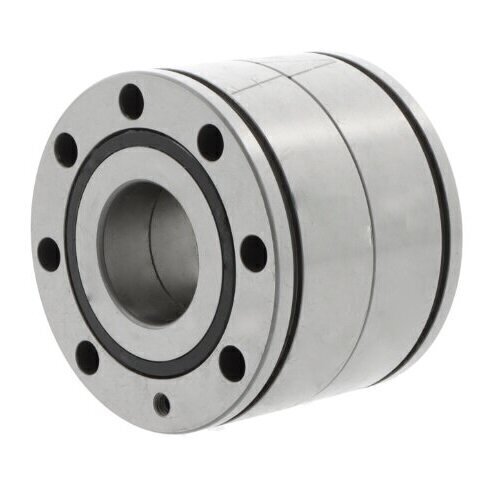

BSF2575-DDUHP2B NSK Axial Angular Contact Ball Bearing 25mm x 75mm x 28mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
25mm
Lubrication hole
With two lubrication grooves
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
75mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
28mm
Reference
BSF2575-DDUHP2B
Additional Reference:
10141154
Quick Order Code
BB-522177
Product Description
The BSF2575 DDUHP2B NSK Axial Angular Contact Ball Bearing is a precision-engineered bearing designed for highly dynamic operating conditions demanding exceptional accuracy, high load carrying capacity, superior rigidity, and low friction performance. This sealed bearing combines advanced NSK engineering with features specifically tailored for demanding industrial applications.
Key Performance Characteristics
- Supports both radial and high axial forces simultaneously thanks to the 60 degree contact angle
- Double direction capability for versatile bidirectional load handling
- Sealed design for protection against contamination and maintenance-free operation
- High precision tolerance class P2 / ABEC 9 for superior accuracy
- Wide operating temperature range from -20 degreeC to +120 degreeC for diverse environmental conditions
Design Features
- Polyamide cage construction for reliable performance and reduced friction
- Fixing holes for secure direct mounting and installation flexibility
- Two lubrication grooves enabling optimized lubrication delivery for extended bearing life
- Standard bearing steel construction for durability and consistent performance
Specifications
- Bore Diameter: 25mm
- Outer Diameter: 75mm
- Width: 28mm
- Brand: NSK
- Contact Angle: 60 degree
- Sealing Type: Sealed
- Cage Material: Polyamide
- Tolerance Class: P2 / ABEC 9
- Temperature Range: -20 degreeC to +120 degreeC
- Operating Direction: Double direction bearing
- Reference: BSF2575DDUHP2B
Applications
Ideal for precision machinery and systems requiring high-speed, high-load capacity bearings such as:
- Screw drive systems and precision spindles
- Machine tool assemblies
- Industrial automation equipment
- High-precision positioning systems
- Compact mounting assemblies with integrated lubrication requirements
