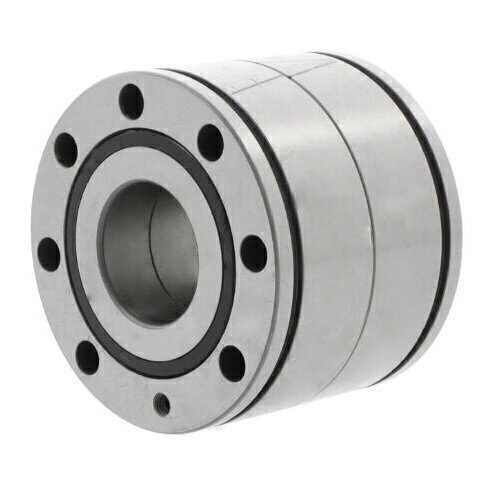

BSF1255-DDUHP2B NSK Axial Angular Contact Ball Bearing 12mm x 55mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NSK
Cage
Polyamide cage
Contact angle
60 degree
Fixing
With fixing holes
Inside Dia
12mm
Lubrication hole
With two lubrication grooves
Material
Standard bearing steel
Operating direction
Double direction bearing
Outside Dia
55mm
Product range
Single bearing
Sealing Type
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P2 / ABEC 9
Width
25mm
Reference
BSF1255-DDUHP2B
Additional Reference:
10134540
Quick Order Code
BB-519688
Product Description
BSF1255 DDUHP2B NSK Axial Angular Contact Ball Bearing
This precision axial angular contact bearing is engineered for highly dynamic applications requiring exceptional accuracy, high load capacity, superior rigidity, and low friction operation. The BSF1255 DDUHP2B is ideal for demanding precision positioning systems, screw drives, and industrial machinery where reliable bidirectional axial-radial load support is essential.
Key Performance Characteristics:
- Supports both radial and high axial forces simultaneously due to the 60 degree contact angle design
- Double direction capability for bidirectional axial load support
- High precision tolerance class P2/ABEC 9 for superior accuracy
- Low friction operation ensures efficient power transmission
- Sealed design provides enhanced protection against contamination
Design Features:
- Integrated fixing holes for secure direct mounting
- Two lubrication grooves for optimized lubrication distribution
- Polyamide cage construction for durability and reliability
- Compact design optimizes space utilization in adjacent construction
- Sealed bearing configuration for maintenance-free operation
Specifications:
- Bore Diameter: 12mm
- Outer Diameter: 55mm
- Width: 25mm
- Contact Angle: 60 degree
- Sealing Type: Sealed
- Cage Material: Polyamide
- Tolerance Class: P2/ABEC 9
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Material: Standard bearing steel
- Manufacturer: NSK
Perfect for precision applications requiring reliable axial-radial load support with minimal maintenance requirements and superior performance in demanding industrial environments.
