Quick Code: BB-515475

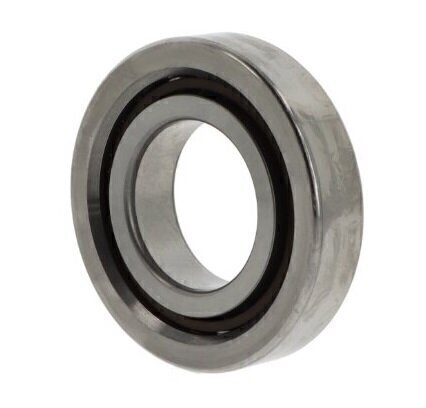

BSA305 CGA SKF Axial Angular Contact Ball Bearing 25mm x 62mm x 17mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
SKF
Cage
Polyamide cage
Contact angle
62 degree
Fixing
Without fixing holes
Inside Dia
25mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
62mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-20 to +120 °C
Tolerance class
Dimensional accuracy P4 or ABEC 7, running accuracy P2 or AB
Width
17mm
Reference
BSA305
Additional Reference:
10122192
Quick Order Code
BB-515475
Product Description
BSA305 CGA SKF Axial Angular Contact Ball Bearing
This precision axial angular contact bearing is engineered for dynamic applications requiring high accuracy, load capacity and rigidity. The compact 25mm x 62mm x 17mm configuration makes it ideal for space-constrained installations while delivering reliable performance in demanding industrial environments.
Key Performance Features:
- 62 degree contact angle optimized for axial load support with moderate radial load capability
- High precision design with P4 dimensional accuracy and P2 running accuracy (ABEC 7/AB equivalent)
- Low friction operation for efficient power transmission
- Single direction bearing configuration for unidirectional axial loads
- Polyamide cage for lightweight, durable operation
Design Specifications:
- Bore Diameter: 25mm
- Outer Diameter: 62mm
- Width: 17mm
- Brand: SKF
- Material: Standard bearing steel
- Sealing Type: Open design
- Cage Material: Polyamide
- Fixing: Without fixing holes for flexible mounting options
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Tolerance Class: P4 dimensional / P2 running accuracy (ABEC 7)
Applications:
The BSA305 CGA is particularly suited for:
- Precision machinery requiring compact bearing solutions
- Screw drive and lead screw applications
- High-speed equipment with axial load requirements
- Industrial automation and positioning systems
- Applications with space limitations requiring efficient bearing design
Reference: BSA305CGA
