Quick Code: BB-515474

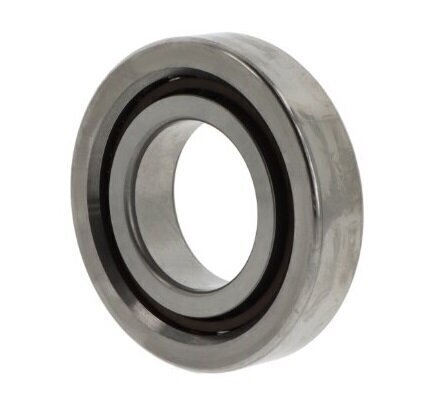

BSA208 CGB SKF Axial Angular Contact Ball Bearing 40mm x 80mm x 18mm
SKF BSA208 CGB Axial Angular Contact Ball Bearing
The BSA208 CGB is a premium single-direction axial angular contact ball bearing from SKF, engineered for high-performance applications requiring precise load distribution and exceptional rigidity. With a 62-degree contact angle, this bearing excels at supporting both radial and significant axial forces simultaneously, making it ideal for dynamic, demanding environments.
Technical Specifications:
- Bore Diameter: 40mm
- Outer Diameter: 80mm
- Width: 18mm
- Brand: SKF
- Reference: BSA208CGB
- Contact Angle: 62 degree
- Cage Material: Polyamide
- Bearing Steel: Standard bearing steel
- Sealing Type: Open design
- Accuracy Class: Dimensional accuracy P4 (ABEC 7) / Running accuracy P2
- Operating Temperature Range: -20 degreeC to +120 degreeC
- Mounting Configuration: Without fixing holes
- Lubrication: Without lubrication groove
Applications:
This bearing is well-suited for precision machinery, gearboxes, spindle assemblies, automotive transmissions, and industrial equipment where high axial load capacity and low friction are critical. The open design and polyamide cage ensure reliable performance in applications requiring both thermal stability and high-speed capability.
