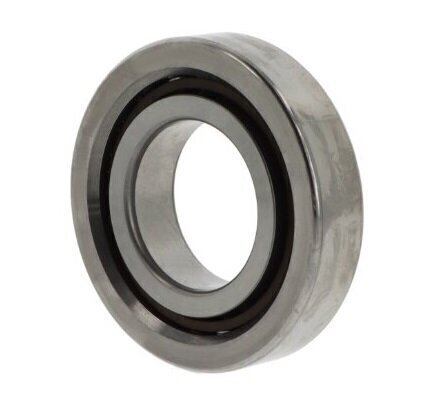

7602017-TVP FAG Axial Angular Contact Ball Bearing 17mm x 40mm x 12mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
FAG
Cage
Polyamide cage
Contact angle
60 degree
Fixing
Without fixing holes
Inside Dia
17mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
40mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-30 to +120 °C
Tolerance class
Special tolerance
Width
12mm
Reference
7602017-TVP
Additional Reference:
10140276
Quick Order Code
BB-521957
Product Description
The 7602017-TVP FAG Axial Angular Contact Ball Bearing is a precision-engineered bearing designed for demanding applications requiring reliable axial and radial force support. Built with FAG's renowned quality standards, this single-direction bearing delivers exceptional performance in dynamic operating conditions with minimal maintenance requirements.
Key Performance Characteristics
- Supports both radial and high axial forces with the proven 60 degree contact angle design
- Compact size ideal for space-constrained applications
- Low friction operation for improved efficiency and reduced heat generation
- High precision engineering for critical industrial applications
- Single-direction bearing optimized for unidirectional load applications
Design & Features
- Polyamide cage construction – provides reliable ball spacing and durability
- Open sealing design – suitable for clean, controlled environments
- Standard bearing steel – delivers consistent performance and longevity
- Compact profile – 17mm bore with 12mm width enables space-efficient installation
- No fixing holes – streamlined design for direct mounting applications
Specifications
- Reference: 7602017-TVP
- Brand: FAG
- Inside Diameter: 17mm
- Outside Diameter: 40mm
- Width: 12mm
- Contact Angle: 60 degree
- Cage Material: Polyamide
- Sealing Type: Open
- Operating Direction: Single direction bearing
- Tolerance Class: Special tolerance
- Lubrication: Without lubrication groove
- Operating Temperature Range: -30 degreeC to +120 degreeC
- Product Type: Single bearing
Typical Applications
This bearing is well-suited for precision machinery, compact mechanical assemblies, robotics, and equipment where space efficiency and reliable axial-radial load handling are essential. Ideal for applications operating in clean environments where open sealing is appropriate, such as precision spindles, tool holders, and compact drive systems.
