8M Double Sided Timing Belts (8mm Pitch)
Quick Code: BB-404917

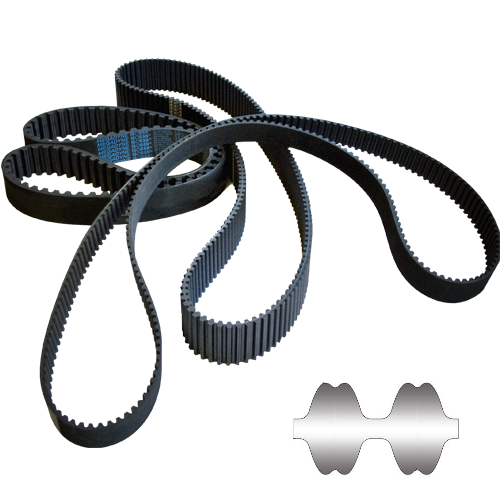

1080-RPP8-DD-20 Megadyne Isoran Double-Sided Timing Belt (1080-8M-20DD)
Also Try
H Double Sided Timing Belts (1/2inch Pitch)
5M Double Sided Timing Belts (5mm Pitch)
L Double Sided Timing Belts (3/8inch Pitch)
XL Double Sided Timing Belts (1/5inch Pitch)
14M Double Sided Timing Belts (14mm Pitch)
Buy Now
Qty:
Product Specification
Brand
Megadyne
Length
1080mm
Number of Teeth
135
Pitch
8mm
Width
20mm
Reference
020470600602
Quick Order Code
BB-404917
Product Description
Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. Compared to Isoran Imperial Pitch, they can transmit more power per the same width.

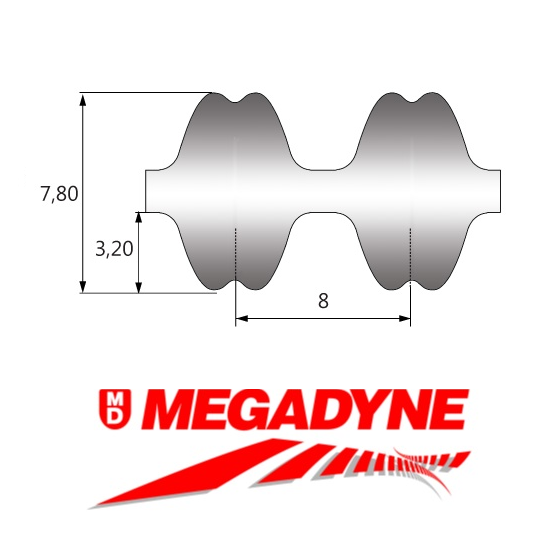

The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.
Main components:Key Features
