Quick Code: BB-383533

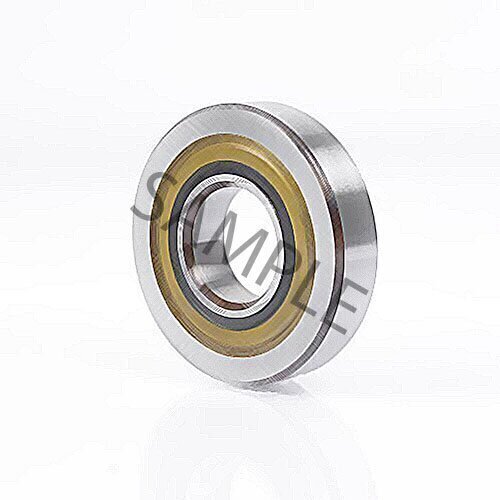

GC40 Nadella Track Roller Bearing
Also Try
INA Track Roller Bearings LR5
INA Track Roller Bearings LFR5
INA Track Rollers Bearings LR6
INA Track Roller Bearings LR2
ZEN Track Roller Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Cage
None, full complement needle bearing
Eccentric ring
Without eccentric ring
Inner dimension
18mm
Material
Standard bearing steel
Outer dimension
40mm
Outer ring
Spherical outside surface
Seal
None, open bearing
Temperature range
-20 to +120 Deg C
Width
21.6mm
Reference
GC40
Additional Reference:
10154381
Brand
Nadella
Quick Order Code
BB-383533
Product Description
The GC40 Nadella Track Roller Bearing is a precision-engineered single row needle bearing designed for smooth and reliable linear motion guidance in industrial applications. This high-performance track roller offers exceptional performance across diverse mechanical systems.
Technical Specifications
- Type: Single row, full complement needle bearing
- Bore Size: 18mm
- Outer Diameter: 40mm
- Width: 21.6mm
- Material: Standard bearing steel
- Outer Ring: Spherical outside surface
- Sealing: Open bearing (no seals)
- Eccentric Ring: Without eccentric ring
- Operating Temperature Range: -20°C to +120°C
Key Features
- High precision track roller for linear motion guidance
- Full complement needle bearing design for maximum load capacity
- Durable standard bearing steel construction
- Compact 18mm bore design suitable for various mechanical applications
- Versatile performance in industrial motion systems
Potential Applications
- Industrial automation equipment
- Precision motion control devices
- Material handling systems
- Conveyor machinery
- Industrial robotics
- Mechanical guidance systems
- Manufacturing equipment
Part of Nadella's renowned track roller series, the GC40 provides reliable performance and smooth running in demanding industrial environments. Its robust design and full complement needle bearing configuration ensure consistent, low-friction movement across a wide range of applications, making it an ideal solution for precise linear motion requirements.
