Quick Code: BB-141593

GY1112KRRB 1.3/4inch INA Bearing Insert

£35.95 Was £39.94 exc VAT (£43.14 inc VAT)
In Stock   Free Delivery over £100   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Alternative Part Number
GY1112-KRR-B-AS2/V; GY1112KRRBAS2/V
Inner Race Width (B)
49.2mm
Inside Dia (d)
1.3/4inch = 44.45mm
Outer Race Width (C)
22mm
Outer Ring Profile
Spherical
Outside Dia (D)
85mm
RHP Equivalent
1045-1.3/4G
Reference
GY1112KRRB
Brand
INA
Quick Order Code
BB-141593
Product Description

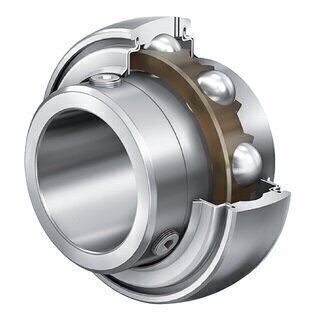

GY1112KRRB 1.3/4inch INA Bearing Insert

INA bearing insert with spherical outer ring, location by grub screws and R seals on both sides.

Features:
  • Grease lubrication
  • Lifetime lubrication, free from maintenance
  • Sealed on both sides
  • Operating temperature range: -20 deg C to +120 deg C

    Sizes (see below diagram):

    d: 1.3/4inch
    d: 44.45mm
    D: 85mm
    B: 49.2mm
    A: 8mm
    C: 22mm
    C2: 25.7mm
    Ca: 6.4mm
    D1: 71.7mm
    d1: 57.9mm
    S: 19mm
    W: 5/32inch
    Mass: 0.68kg
    Basic dynamic load rating, radial: 34500N
    Basic static load rating, radial: 20400N
    Fatigue limit load, radial: 1030N
