Quick Code: BB-141283

E50KLL INA Bearing Insert with 50mm Bore

£57.94 Was £64.38 exc VAT (£69.53 inc VAT)
In Stock   Free Delivery Available   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Inner Race Width (B)
62.8mm
Inside Dia (d)
50mm
Outer Race Width (C)
22mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
90mm
Reference
E50KLL
Brand
INA
Quick Order Code
BB-141283
Product Description

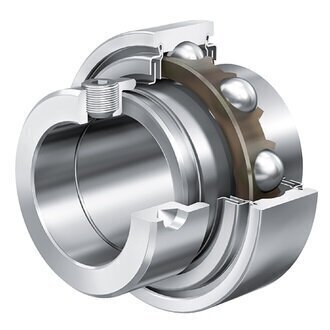

E50KLL INA Bearing Insert with 50mm Bore

INA bearing insert with cylindrical outer ring, eccentric locking collar and L seals on both sides.

Features:
  • Grease lubrication
  • Lifetime lubrication, free from maintenance
  • Sealed on both sides
  • Operating temperature range: -20 deg C to +120 deg C

    Sizes (see below diagram):

    d: 50mm
    D: 90mm
    B: 62.8mm
    B1: 49.2mm
    C: 22mm
    C2: 26.4mm
    D1: 77.3mm
    d1: 62.8mm
    d3 max: 69mm
    S: 24.6mm
    W: 5mm
    Mass: 1kg
    Basic dynamic load rating, radial: 37500N
    Basic static load rating, radial: 23200N
    Fatigue limit load, radial: 1180N
