Bearings Housed & Flanged Bearings INA Housed Bearings INA Bearing Inserts
Quick Code: BB-141227

E40KRR INA Bearing Insert with 40mm Bore

E40KRR INA Bearing Insert with 40mm Bore
Also Try
£45.65 Was £50.72 exc VAT (£54.78 inc VAT)
In Stock   Free Delivery over £100   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Inner Race Width (B)
56.5mm
Inside Dia (d)
40mm
Outer Race Width (C)
21mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
80mm
RHP Equivalent
1140-40DEC
Reference
E40KRR
Brand
INA
Quick Order Code
BB-141227
Product Description

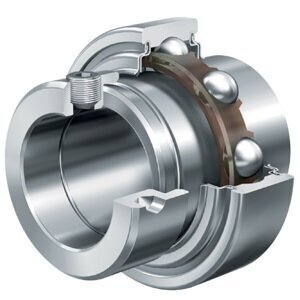

E40KRR INA Bearing Insert with 40mm Bore

INA bearing insert with cylindrical outer ring, eccentric locking collar and R seals on both sides.

Features:
  • Grease lubrication
  • Lifetime lubrication, free from maintenance
  • Sealed on both sides
  • Operating temperature range: -20 deg C to +120 deg C

    Sizes (see below diagram):

    d: 40mm
    D: 80mm
    B: 56.5mm
    B1: 42.9mm
    C: 21mm
    C2: 23.5mm
    D1: 68.3mm
    d1: 52.3mm
    d3 max: 58mm
    S: 21.4mm
    W: 5mm
    Mass: 0.75kg
    Basic dynamic load rating, radial: 34500N
    Basic static load rating, radial: 19800N
    Fatigue limit load, radial: 1010N
