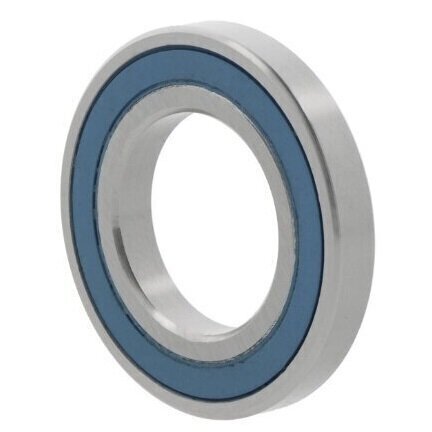

SMR115-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 5mm x 11mm x 4mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
5mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
11mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
4mm
Reference
SMR115-2RS
Additional Reference:
10128326
Quick Order Code
BB-517653
Product Description
The SMR115-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a precision-engineered, compact miniature bearing designed for high-performance applications requiring exceptional durability and reliability in small mechanical systems.
Key Technical Specifications:
- Dimensions: 5mm x 11mm x 4mm
- Type: Single row deep groove ball bearing
- Bore: Cylindrical bore
- Material: Stainless steel construction
- Sealing: Sealed (2RS configuration)
Detailed Product Characteristics:
- Ball Rows: Single row bearing
- Cage Material: Sheet steel
- Rolling Elements Material: Stainless steel
- Clearance: Normal radial clearance
- Outer Ring: Without flange/groove
- Current Insulation: No
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
Performance Features:
- Robust sealed design prevents dust and contaminant entry
- Stainless steel construction offers superior corrosion resistance
- Ideal for precision and miniature applications
- Low maintenance and long-lasting performance
Typical Application Industries:
- Medical devices
- Precision instrumentation
- Robotics
- Miniature electric motors
- Dental equipment
- Aerospace components
Use Cases:
- Micro-motors and small mechanical systems
- Compact precision machinery
- Miniature pumps and compressors
- Sensors and measuring equipment
- Small robotic joint mechanisms
The SMR115-2RS ZEN bearing provides an optimal solution for engineers and designers seeking a compact, corrosion-resistant bearing with reliable performance in demanding small-scale applications.
