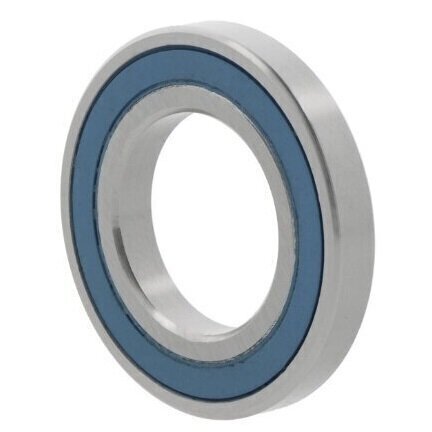

S61810-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 50mm x 65mm x 7mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
50mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
65mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
7mm
Reference
S61810-2RS
Additional Reference:
10127949
Quick Order Code
BB-517459
Product Description
The S61810-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a high-performance precision bearing designed for applications requiring corrosion resistance and reliable performance in challenging environments.
Key Features:
- Stainless steel construction for enhanced durability and corrosion resistance
- Single row deep groove design
- Fully sealed (2RS) configuration for superior protection
- Cylindrical bore for versatile mounting options
- Sheet steel cage for robust performance
Technical Specifications:
- Inside Diameter: 50mm
- Outside Diameter: 65mm
- Width: 7mm
- Material: Stainless steel (both bearing and rolling elements)
- Sealing: Sealed (2RS)
- Cage Type: Sheet steel
- Radial Clearance: Normal
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No current insulation
- Outer Ring: Without flange/groove
Typical Applications:
- Food processing equipment
- Marine and coastal environments
- Chemical processing plants
- Medical and pharmaceutical machinery
- Automotive components in corrosive conditions
- Agricultural equipment
The stainless steel construction makes this bearing an exceptional choice for applications requiring resistance to moisture, chemicals, and corrosive environments. Its sealed design provides excellent protection against contaminants, while maintaining optimal performance across a wide temperature range.
Ideal for precision machinery where durability, reliability, and corrosion resistance are critical performance requirements.
