Bearings
Cylindrical Roller Thrust
Quick Code: BB-527379

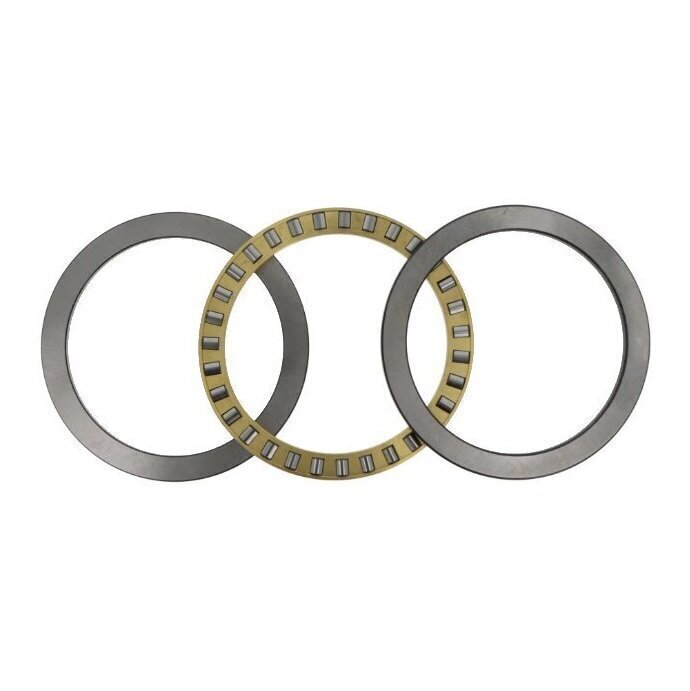

89322-MB NKE Axial Cylindrical Roller Thrust Bearing 110x190x48mm
Help Articles
Also Try
XL Timing Belts (1/5inch)
XL Section Timing Pulleys (5.08mm)
Ball Bearings
Housed & Flanged Bearings
Oilite Bearing Bushes
Buy Now
Qty:
Product Specification
Angular adjustment
Non-angle adjustable
Brand
NKE
Cage
Brass cage
Inside Dia
110mm
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
190mm
Product range
Complete axial cylindrical roller bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
48mm
Reference
89322 -MB
Additional Reference:
10161684
Quick Order Code
BB-527379
Product Description
Cylindrical roller thrust bearings are best suited for arrangements that involve the support of heavy axial loads. In addition, they are relatively insensitive to shock loads, are very stiff - requiring little axial space. As standard they are available as single direction bearings and can only accommodate axial loads acting in one direction.The cylindrical surface of the rollers is slightly relieved towards the ends, which virtually eliminates damaging edge stresses. These bearings are of separable design which enables the ease of mounting and assembly of the individual components.
