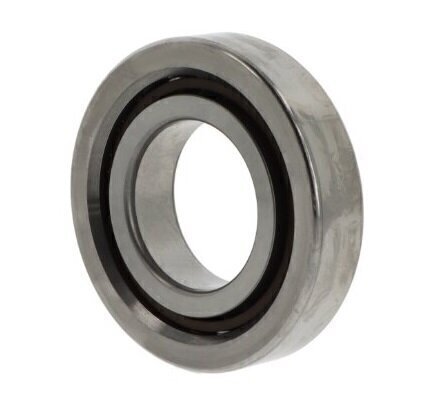

7602050-TVP FAG Axial Angular Contact Ball Bearing 50mm x 90mm x 20mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Hiwin Carriages
Buy Now
Product Specification
Brand
FAG
Cage
Polyamide cage
Contact angle
60 degree
Fixing
Without fixing holes
Inside Dia
50mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
90mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-30 to +120 °C
Tolerance class
Special tolerance
Width
20mm
Reference
7602050-TVP
Additional Reference:
10188901
Quick Order Code
BB-530950
Product Description
7602050-TVP FAG Axial Angular Contact Ball Bearing
This precision FAG axial angular contact bearing is engineered for dynamic applications requiring reliable performance, excellent load capacity, and precision accuracy. With its 60 degree contact angle design, the 7602050-TVP efficiently supports both radial and axial forces, making it an ideal solution for demanding rotating machinery and industrial equipment.
Key Performance Features:
- 60 degree contact angle enables support for both radial forces and high axial loads
- Single direction bearing design optimized for unidirectional load applications
- TVP sealing technology provides enhanced protection in open design configuration
- Polyamide cage construction ensures optimal ball spacing and reduced friction
- High-precision construction maintains accuracy under demanding operating conditions
- Extended temperature range from -30 degreeC to +120 degreeC for diverse environmental conditions
Design Specifications:
- Brand: FAG quality engineering and manufacturing standards
- Bore Diameter: 50mm
- Outer Diameter: 90mm
- Width: 20mm
- Material: Standard bearing steel construction
- Tolerance Class: Special tolerance for enhanced precision and reliability
- Sealing Type: Open design for applications where seal-free operation is preferred
- Without fixing holes for flexible installation configurations
- No lubrication groove - suitable for pre-lubricated or alternative lubrication methods
Ideal Applications:
The 7602050-TVP bearing is particularly well-suited for:
- Industrial machinery requiring combined radial and axial load support
- High-speed rotating equipment with unidirectional load configurations
- Precision spindle applications and machine tool equipment
- Heavy-duty industrial gearboxes and transmission systems
- Specialized rotating machinery demanding exceptional rigidity and reliability
- Applications requiring extended temperature range operation
The 7602050-TVP bearing delivers excellent performance with minimal maintenance requirements, making it an excellent choice for applications where precision, durability, and consistent long-term performance are essential.
