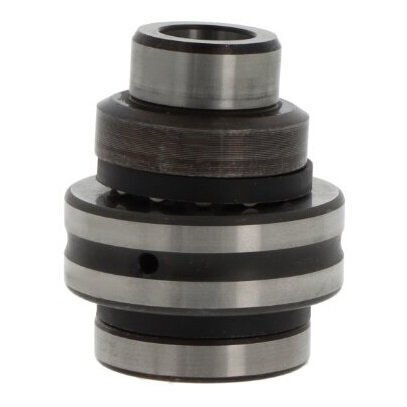

ZARN3585-L-TV INA Needle Roller/Axial Cylindrical Roller Bearing
Also Try
NKX / NAX Series (Thrust Ball)
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARF Series (Axial Cylindrical Roller)
RAX Series
Buy Now
Product Specification
Inside Dia (d)
35mm
Outside Dia (D)
85mm
Width (H)
82mm
Brand
INA
Quick Order Code
BB-137232
Product Description
The ZARN3585-L-TV INA Needle Roller/Axial Cylindrical Roller Bearing is a sophisticated precision engineering solution designed for complex mechanical applications requiring versatile load management.
Product Composition
This advanced bearing combines multiple precision components to deliver exceptional performance:
- Outer ring with integrated radial and axial raceways
- Shaft locating washers
- Inner ring
- Radial needle roller and cage assembly
- Axial cylindrical roller and cage assemblies
Key Technical Specifications
| Inside Diameter (d): | 35mm |
| Outside Diameter (D): | 85mm |
| Width (H): | 82mm |
Unique L-Type Features
The L-type variant features an extended and stepped shaft locating washer, specifically designed for challenging mounting conditions:
- Ideal for applications where shaft locating washers are not adequately supported axially by the shaft shoulder
- Suitable for bearing units that cannot be sealed on the outside surface of the standard shaft locating washer due to space constraints
Key Advantages
- Double-direction load capacity
- Simultaneously supports radial and axial loads
- Exceptional load distribution
- Precision engineering design
Potential Applications
- Machine tool spindles
- Precision rotary equipment
- Automotive transmission systems
- Industrial gearboxes
- Robotic joint mechanisms
- Applications with limited axial shaft support
Note: Consult with technical specialists to ensure optimal bearing selection for specific application requirements.
