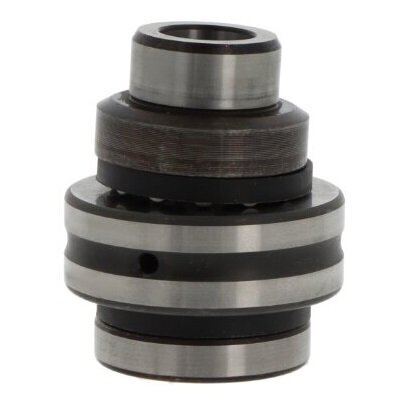

ZARN3570-L-TV INA Needle Roller/Axial Cylindrical Roller Bearing
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARF Series (Axial Cylindrical Roller)
RAX Series
T5 Timing Belts (5mm Pitch)
Female Rod Ends (Bronze Race)
Buy Now
Product Specification
Inside Dia (d)
35mm
Outside Dia (D)
70mm
Width (H)
70mm
Brand
INA
Quick Order Code
BB-137231
Product Description
The ZARN3570-L-TV INA Needle Roller/Axial Cylindrical Roller Bearing is a specialized precision bearing designed for complex mechanical applications with unique mounting requirements. This advanced L-type variant offers enhanced flexibility in challenging installation environments.
Product Composition:
- Outer ring with integrated radial and axial raceways
- Extended and stepped shaft locating washers
- Inner ring
- Radial needle roller and cage assembly
- Axial cylindrical roller and cage assemblies
Key Technical Specifications:
- Inside Diameter (d): 35mm
- Outside Diameter (D): 70mm
- Width (H): 70mm
- Configuration: Double direction load capability
Unique L-Type Features:
The L-type design provides critical advantages in specialized applications:
- Extended and stepped shaft locating washer
- Ideal for installations with inadequate axial shaft shoulder support
- Enables mounting in space-constrained environments
- Facilitates bearing installation where standard washers cannot be sealed
Typical Applications:
- Machine tool spindles with limited mounting space
- Precision positioning equipment
- Automotive transmission systems
- Robotic and automated manufacturing machinery
- Aerospace mechanisms with complex mounting requirements
Engineered for versatility, this bearing offers simultaneous radial and axial load support with exceptional performance in challenging mechanical configurations. Its unique L-type design ensures reliable operation where standard bearings cannot be effectively installed.
