Bearings Needle Roller Bearings Combined Bearings ZARN Series (Axial Cylindrical Roller)
Quick Code: BB-137229

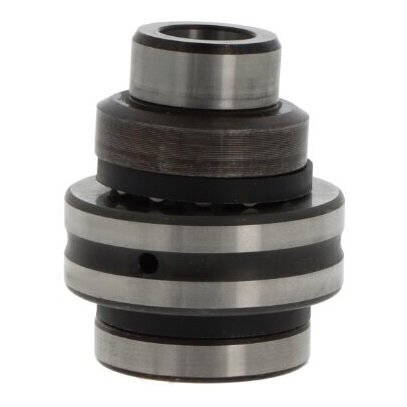

ZARN3062-L-TV INA Needle Roller/Axial Cylindrical Roller Bearing

Also Try

NKIB / NATB Series (Angular - Double Direction)

NKX / NAX Series (Thrust Ball)

NKIA / NATA Series (Angular - Single Direction)

ZARF Series (Axial Cylindrical Roller)

NKXR / NBX Series (Cylindrical Roller)

Buy Now

Qty:

Product Specification

Inside Dia (d)

30mm

Outside Dia (D)

62mm

Width (H)

65mm

Brand

INA

Quick Order Code

BB-137229

Product Description

The ZARN3062-L-TV is a high-performance INA Needle Roller/Axial Cylindrical Roller Bearing designed for complex load-bearing applications with specialized mounting requirements.

Key Technical Specifications:

Dimension	Measurement
Inside Diameter (d)	30mm
Outside Diameter (D)	62mm
Width (H)	65mm

Unique L-Type Configuration

This bearing features a distinctive L-type design with an extended and stepped shaft locating washer, specifically engineered for challenging mounting scenarios:

Provides optimal support in applications with limited axial shaft shoulder support
Enables sealing solutions in constrained spatial environments
Offers enhanced flexibility in complex mechanical assemblies

Product Composition:

Outer ring with integrated radial and axial raceways
Extended and stepped shaft locating washers
Inner ring
Radial needle roller and cage assembly
Axial cylindrical roller and cage assemblies

Key Features:

Double-direction load capacity
Precision-engineered combined bearing design
Versatile mounting options

Ideal Applications:

Machinery with limited axial shaft support
Industrial equipment requiring complex load management
Automotive transmission systems
Precision machinery with spatial constraints
Robotics and motion control mechanisms

The ZARN3062-L-TV provides an exceptional solution for engineering applications demanding high-performance rotational components with multi-directional load-bearing capabilities and specialized mounting flexibility.
