Quick Code: BB-137201

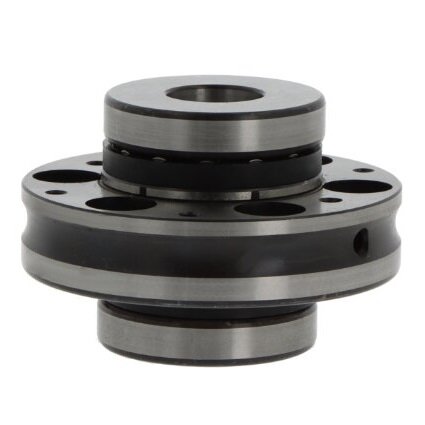

ZARN2052-TV INA Needle Roller/Axial Cylindrical Roller Bearing
Also Try
NKX / NAX Series (Thrust Ball)
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Inside Dia (d)
20mm
Outside Dia (D)
52mm
Width (H)
46mm
Brand
INA
Quick Order Code
BB-137201
Product Description
The ZARN2052-TV is a precision INA Needle Roller/Axial Cylindrical Roller Bearing designed for complex load-bearing applications that require simultaneous radial and axial load management.
Key Technical Specifications
- Inside Diameter (d): 20mm
- Outside Diameter (D): 52mm
- Width (H): 46mm
- Configuration: Double direction load capacity
Product Composition
This advanced bearing features a sophisticated multi-component design, including:
- Outer ring with integrated radial and axial raceways
- Shaft locating washers
- Inner ring
- Radial needle roller and cage assembly
- Axial cylindrical roller and cage assemblies
Typical Application Areas
- Precision machinery requiring complex load management
- Industrial equipment with simultaneous radial and axial loading
- Automotive transmission systems
- Robotics and motion control equipment
- Agricultural and construction machinery
The ZARN2052-TV offers exceptional flexibility for engineering applications demanding high-performance rotational components with multi-directional load-bearing capabilities.
