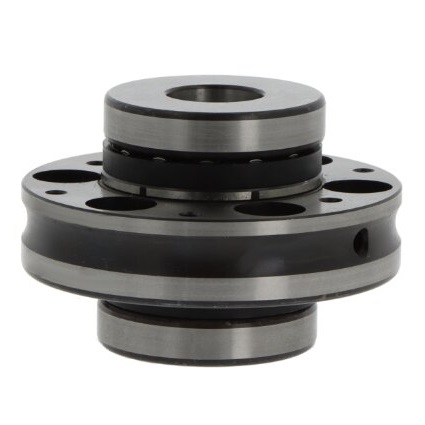

ZARF30105-TV INA Needle Roller/Axial Cylindrical Roller Bearing
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Inside Dia (d)
30mm
Outside Dia (D)
105mm
Width (H)
66mm
Brand
INA
Quick Order Code
BB-135855
Product Description
The ZARF30105-TV INA Needle Roller/Axial Cylindrical Roller Bearing is a high-performance precision bearing designed for demanding industrial applications requiring robust load-bearing capabilities in multiple directions.
Product Highlights
- Advanced combined bearing design with dual functionality
- Capable of handling both radial and axial loads simultaneously
- Precision engineered by INA for heavy-duty industrial environments
Technical Specifications
- Inside Diameter: 30mm
- Outside Diameter: 105mm
- Width: 66mm
- Double directional load capacity
- Outer ring features mounting holes for flexible installation
Structural Components
This bearing comprises a sophisticated assembly including:
- Outer ring with integrated radial and axial raceways
- Shaft locating washers
- Inner ring
- Radial needle roller and cage assembly
- Axial cylindrical roller and cage assemblies
Typical Applications
- Industrial machinery
- Construction equipment
- Heavy-load mechanical systems
- Precision motion control mechanisms
- Automotive and aerospace engineering
The ZARF30105-TV offers versatile mounting options with screw holes in the outer ring, allowing for secure attachment to adjacent constructions or radial locating bores.
