Transmissions V & Wedge Belts V Belts Z Belts (10mm x 6mm)
Quick Code: BB-676649

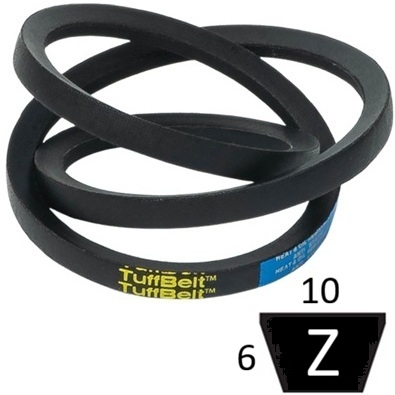

Z31.5 V Belt

Name: Z31.5 V Belt
Brand: Dunlop/Protorque
SKU: Z31.5
Price: 4.16 GBP
Availability: InStock

Help Articles

MEASURE A BELT
Fan Belt Calculator

Also Try

A Belts (13mm x 8mm)

SPZ Belts (9.7mm x 8mm)

SPZ Section Cast Iron - Taper Lock

Taper Bushes

AX Cogged Belts (13mm x 8mm)

Buy Now

Qty:

Product Specification

Brand

Dunlop/Protorque

External Length (Approx)

844mm

Internal Length (Approx)

799mm

Pitch Length (Approx)

821mm

Reference

Z31.5

Quick Order Code

BB-676649

Product Description

Z31 V Belt

The classical V-belt is a temperature and oil resistant universal drive belt that has antistatic properties with good power transmission capabilities. It is suitable for both industrial machinery and agricultural equipment.

Construction and Features

The tensile member consists of a specially treated high strength polyester cord to transmit tensile forces and withstand shock loads.

The fabric jacket provides grip and protection against external agents and resistance to abrasion.

The belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member.

Standards

Conform to 1S04184, D1N2215 and BS3790, they meet 1S01813 for static conductivity and have an operating temperature range of -30 deg C - +60 deg C.

Dimension

10mm top width x 6mm deep

V Pulleys To Suit
